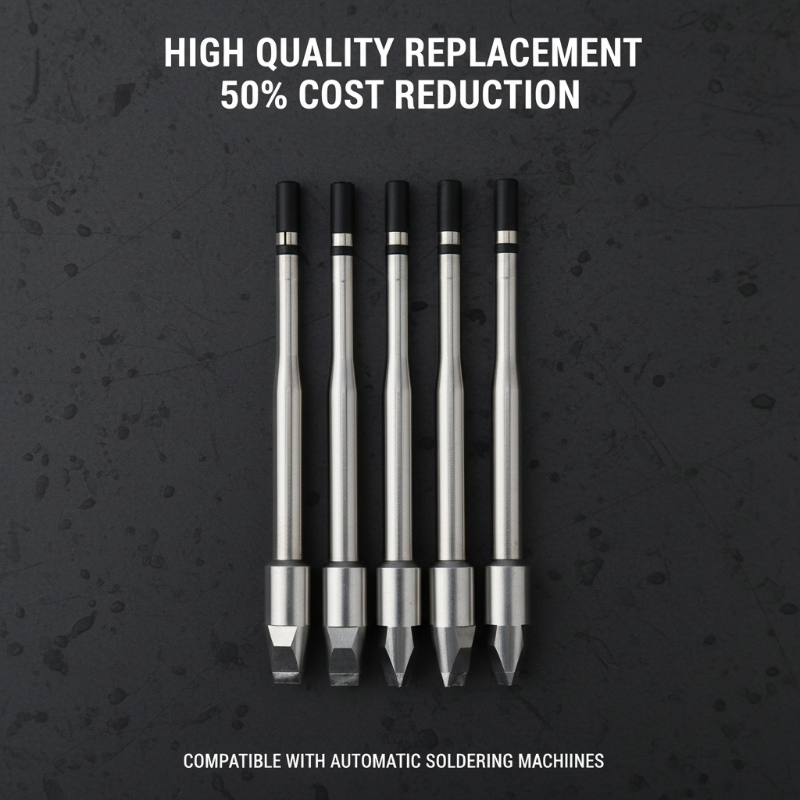

Exact Fit for Hakko TX Series: Direct replacement for TX2/TX1 tips on Japan Hakko automatic soldering machines.

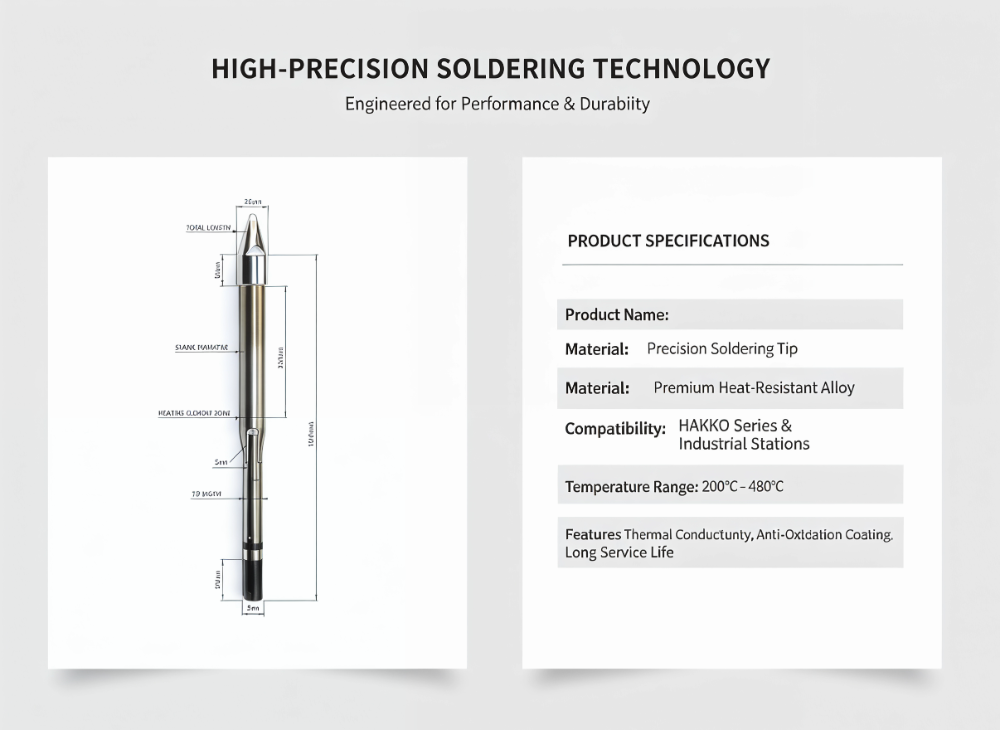

Production-Grade Dimensions: 10.5mm outer diameter, 114.5mm total length – designed for automated feeder systems.

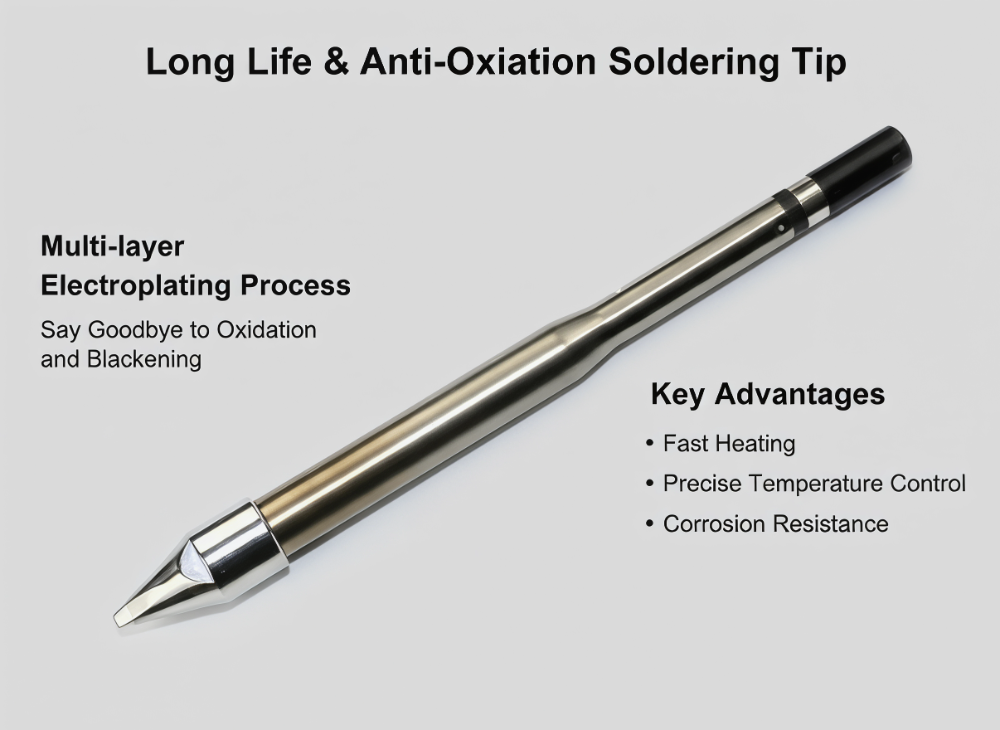

High-Durability Alloy: Iron-plated copper core resists corrosion and tip erosion during continuous operation.
Rapid Thermal Response: Reaches set temperature quickly and recovers fast after each solder joint.
Bulk & Custom Options: Available in volume packs. Custom tip geometries also supported.
Material & Engineering Design

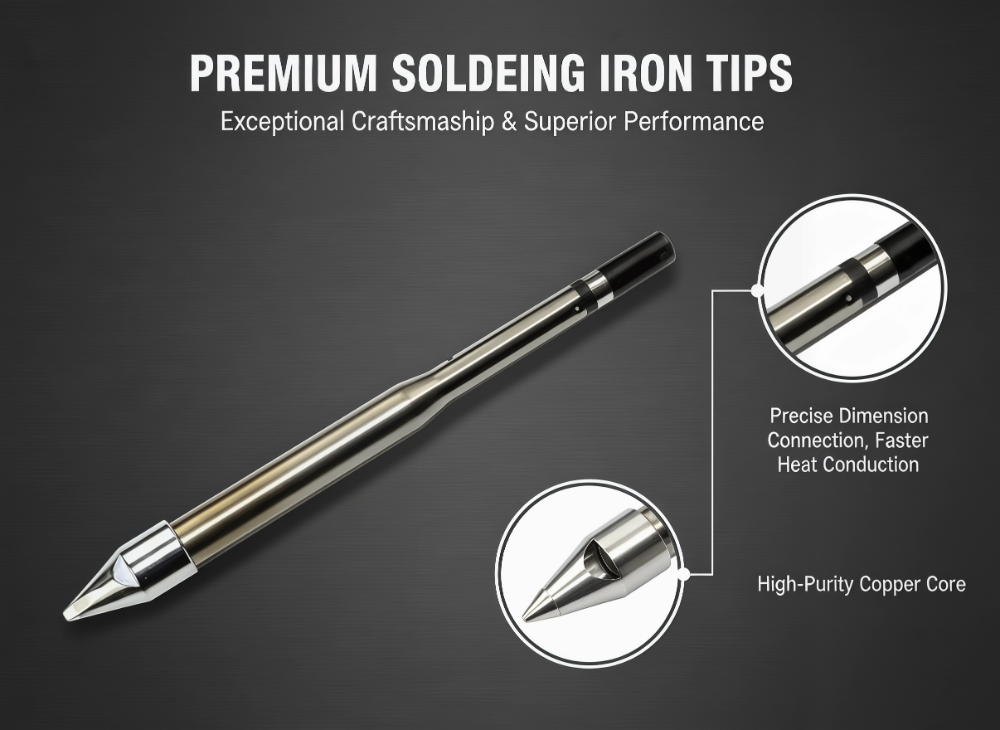

Each automatic soldering machine tip is machined from oxygen-free copper for maximum thermal conductivity, then plated with a uniform iron layer to prevent solder erosion. The 10.5mm outer diameter and 114.5mm total length match Hakko TX series specifications precisely. We apply strict tip-to-ground resistance tests and concentricity checks – critical for automated pick-and-place soldering where even minor deviations cause cold joints or missed pads.
Application Scenarios on Your Production Floor
These tips are purpose-built for robotic soldering lines using Hakko TX series stations. Typical applications include PCB assembly for consumer electronics, automotive control modules, and LED lighting strips. The tip dimension supports both through-hole components and small SMT pads. Because the heating characteristics mirror original tips, you can integrate them into existing production programs without recalibrating temperature profiles or dwell times.
Product Value for Your Business (Cost & Reliability)
As a direct soldering tip manufacturer, we eliminate distributor markups. Your factory gains three advantages: lower per-tip cost compared to branded alternatives, consistent shelf life (every batch uses the same plating thickness), and customization freedom – modify tip length, diameter, or shape for a specific PCB without waiting for proprietary releases. For procurement managers, this means predictable consumable budgets and a second source to de-risk supply chains.
What materials are used in these automatic soldering machine tips?

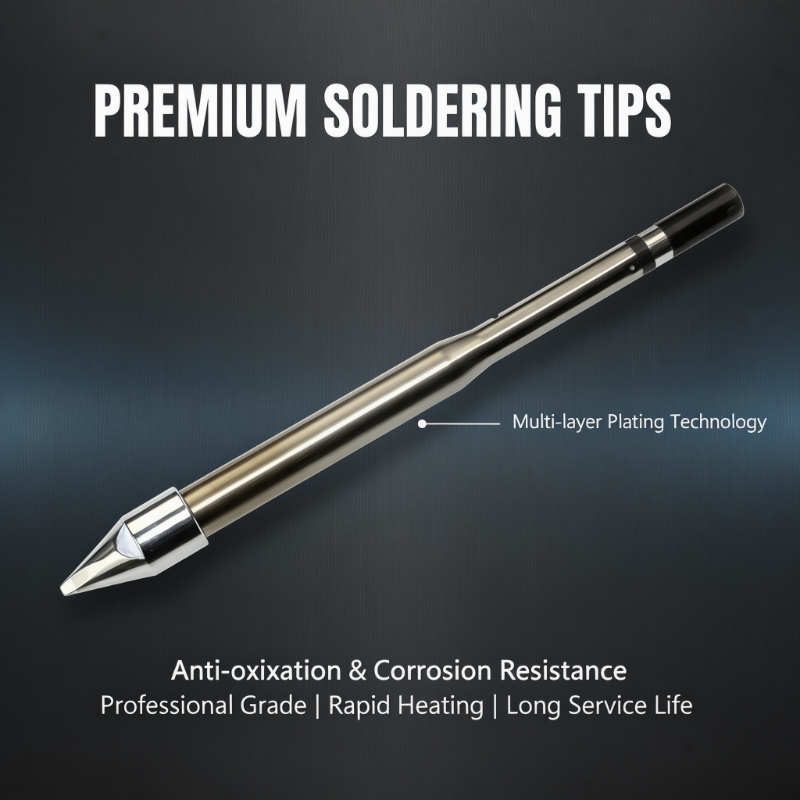

We use high-purity copper cores with an electroplated iron layer, followed by chromium or nickel anti-oxidation treatment. This structure provides fast heat transfer while resisting solder corrosion – essential for 8+ hour production runs.
Do you offer custom tips for non-standard Hakko TX applications?

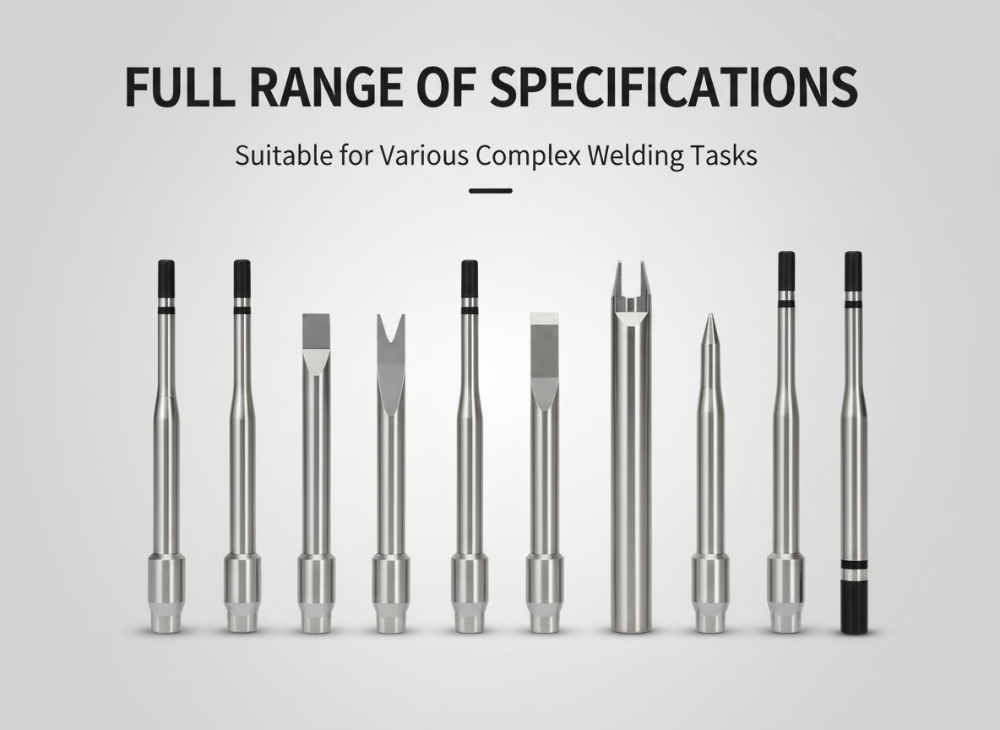

Yes. As a custom soldering tip manufacturer, we can modify the tip diameter, length, angle, or even add tinning wells. Minimum order quantities apply for custom geometries. Provide your drawing or sample.
Will the 10.5mm diameter fit all Hakko TX automatic machines?
The 10.5mm outer diameter and 114.5mm length are designed for standard Hakko TX series automatic soldering stations (including TX1 and TX2 models). Please confirm your machine’s heater bore size before ordering. Contact us for compatibility verification.

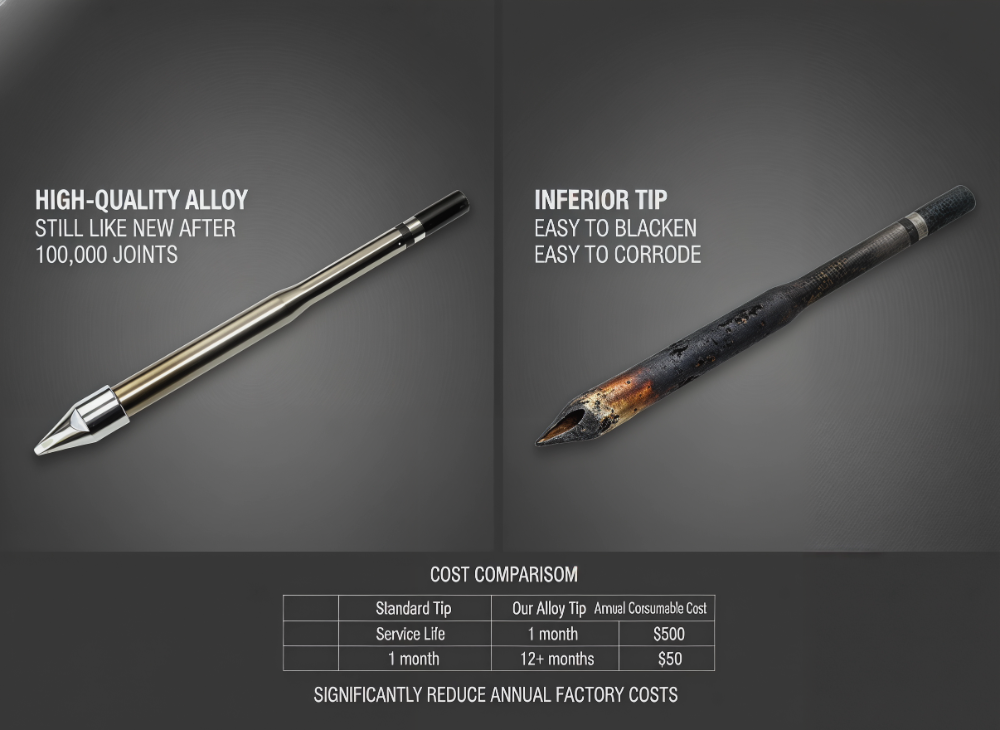

How does the service life compare to original Hakko tips?
Our tips offer comparable or longer life under identical production conditions – typically 15,000–25,000 solder joints depending on temperature and solder type. The difference is our transparent pricing and batch-to-batch consistency. We recommend running a side-by-side trial on your production line.
How should we maintain these tips in automated machines?
Keep the tip tinned when idle. Use automatic tip cleaners (brass wire or sponge) as programmed. Avoid excessive flux accumulation – schedule weekly tip cleaning. Replace immediately if the tip surface becomes pitted or cannot wet properly. We supply maintenance guides with bulk orders.
