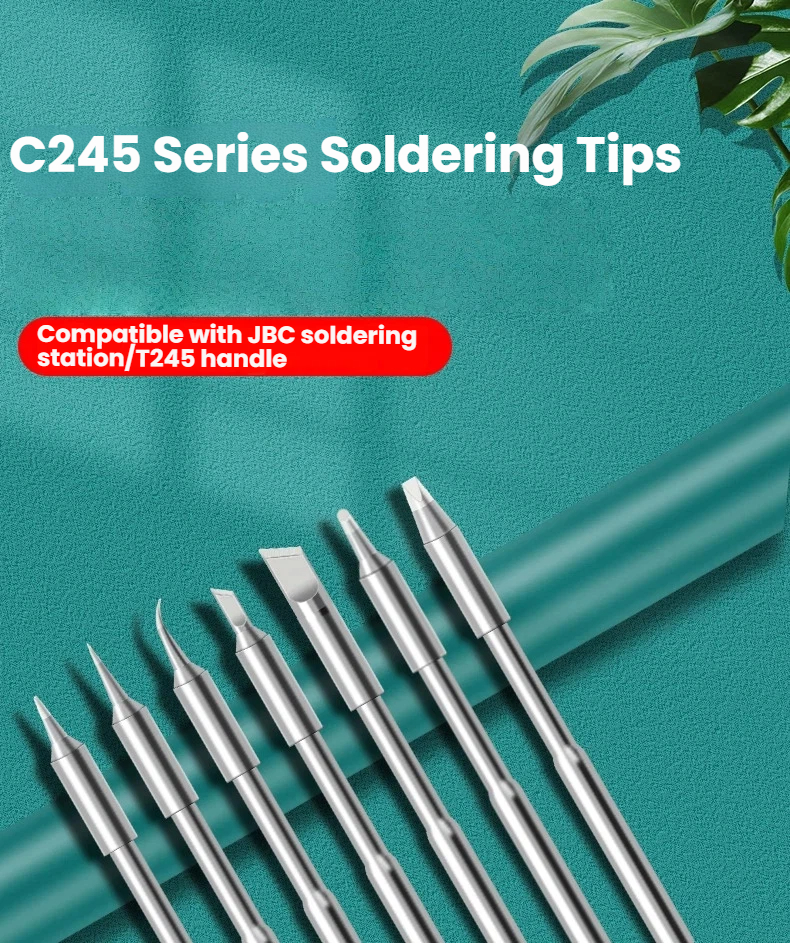

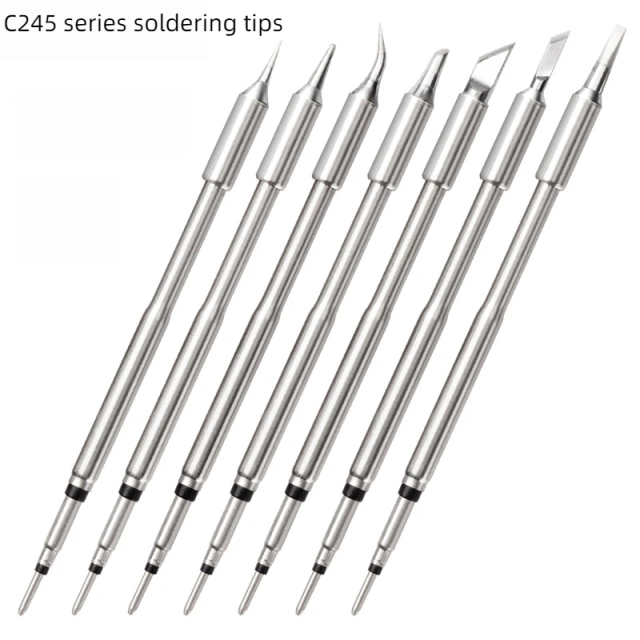

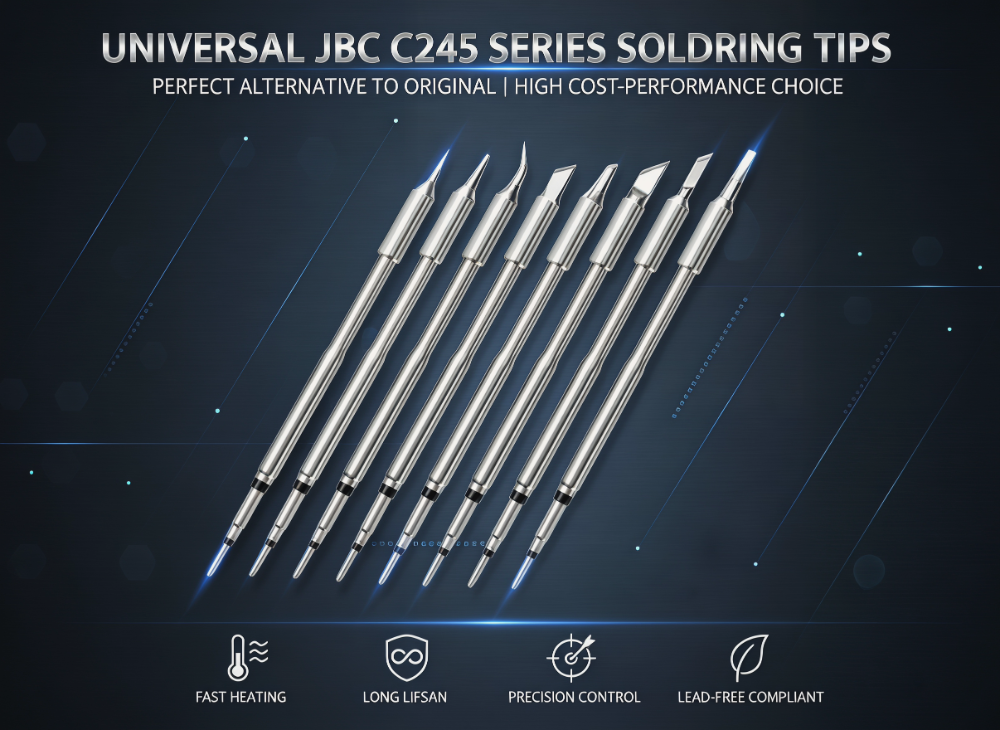

Designed as a direct replacement for the JBC T245‑A soldering handle, our C245 series tips deliver professional‑grade thermal performance at a fraction of the cost of original JBC tips. Whether you run a high‑volume PCB assembly line, perform precision repairs, or manage a maintenance workshop, these tips provide consistent heat transfer, extended service life, and seamless integration with your existing JBC stations.

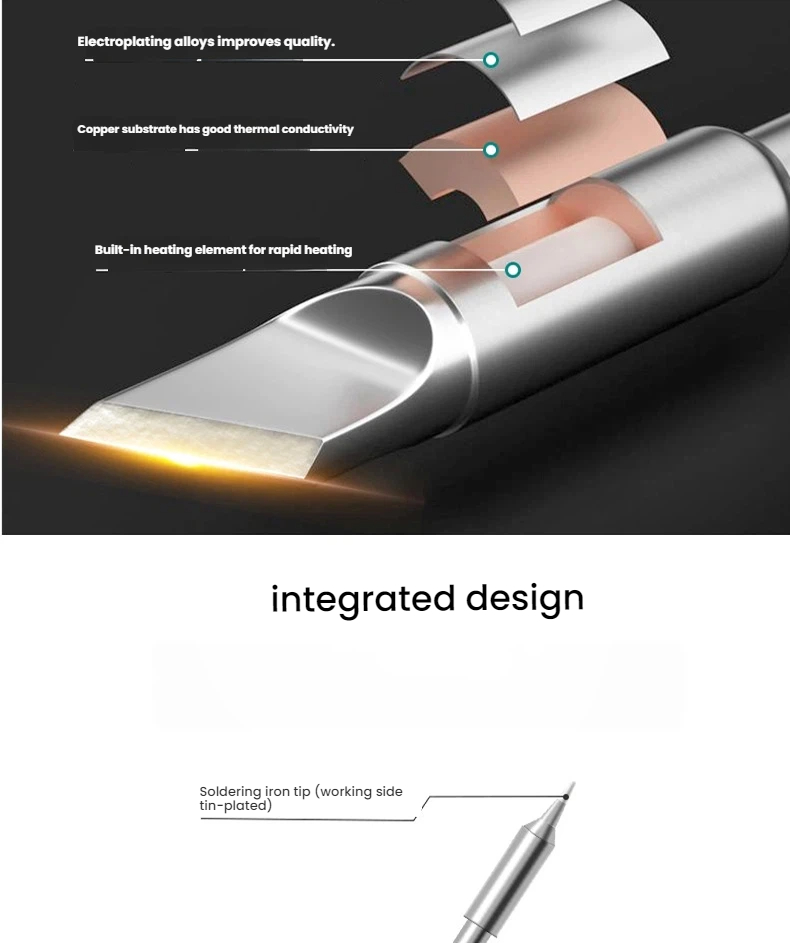

Premium Materials & Precision Engineering

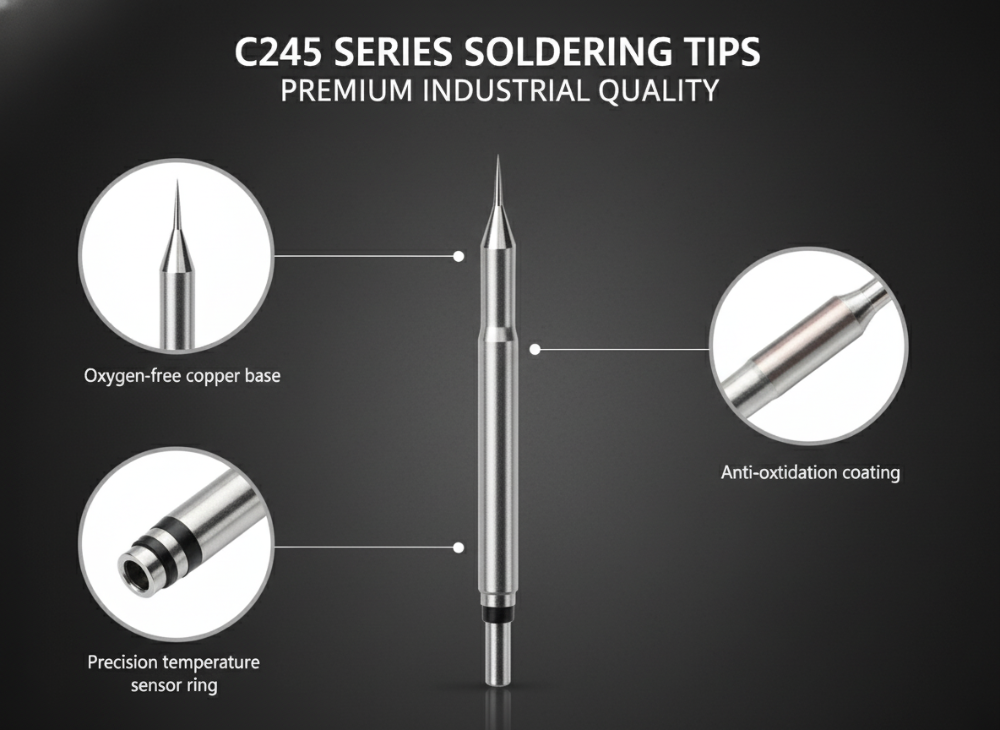

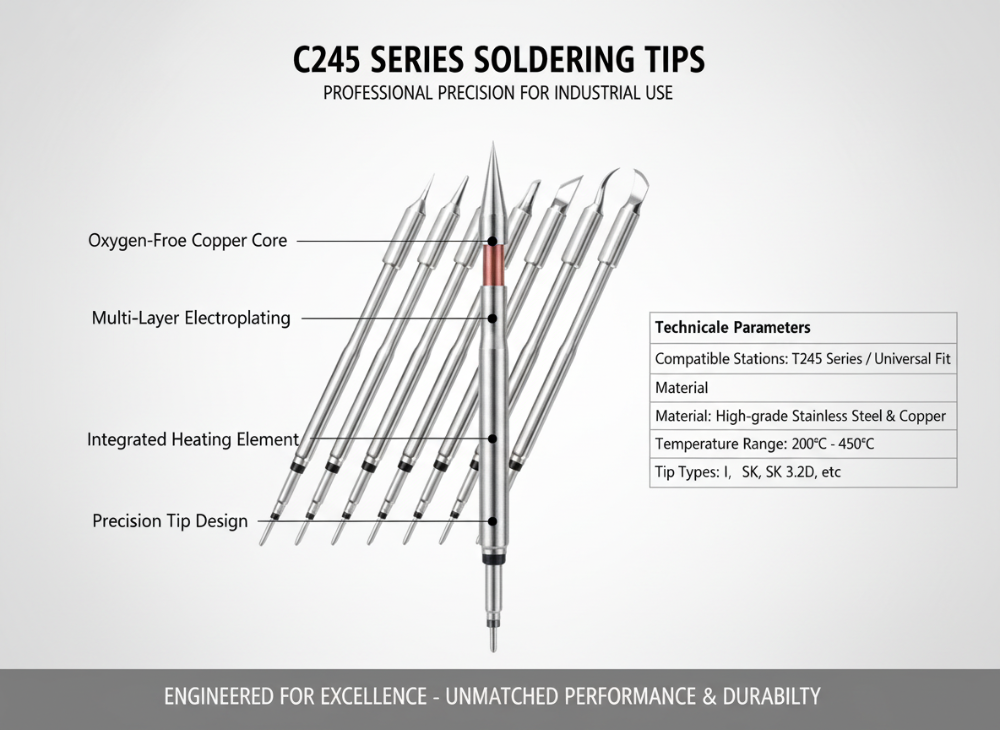

Base material: Made of C1020 oxygen‑free copper (≥ 99.95% purity, IACS ≥ 98.5%, thermal conductivity ≈ 390‑400 W/(m·K)). Precision deep‑hole drilling ensures an inner wall roughness ≤ Ra 0.8, guaranteeing a tight fit with the heating element for minimal heat loss.

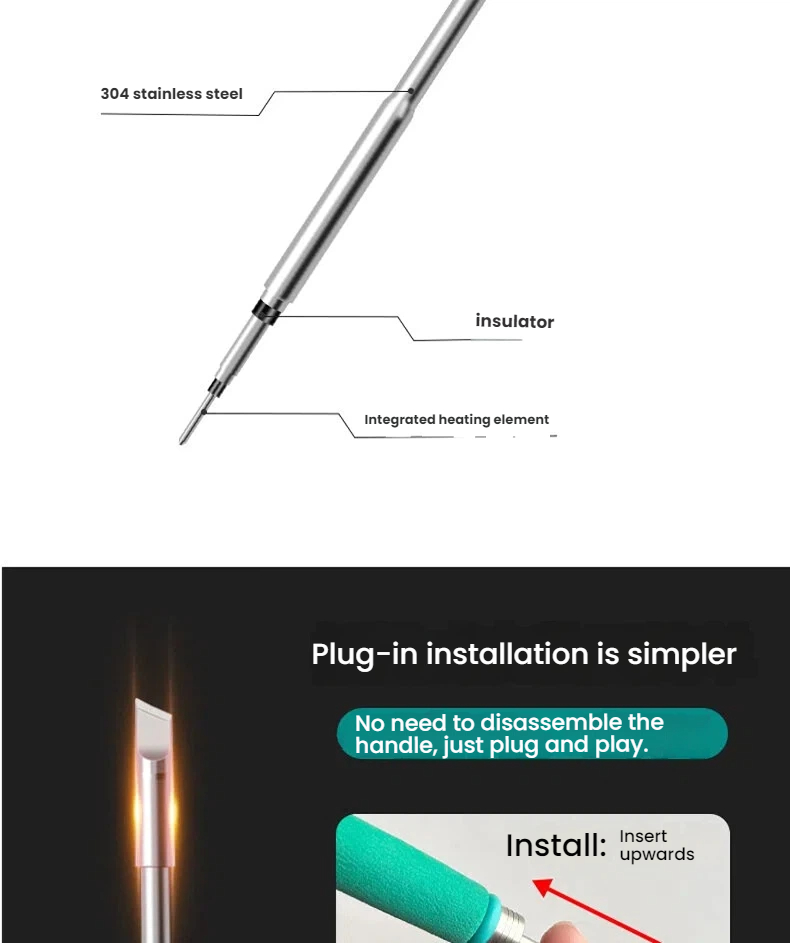

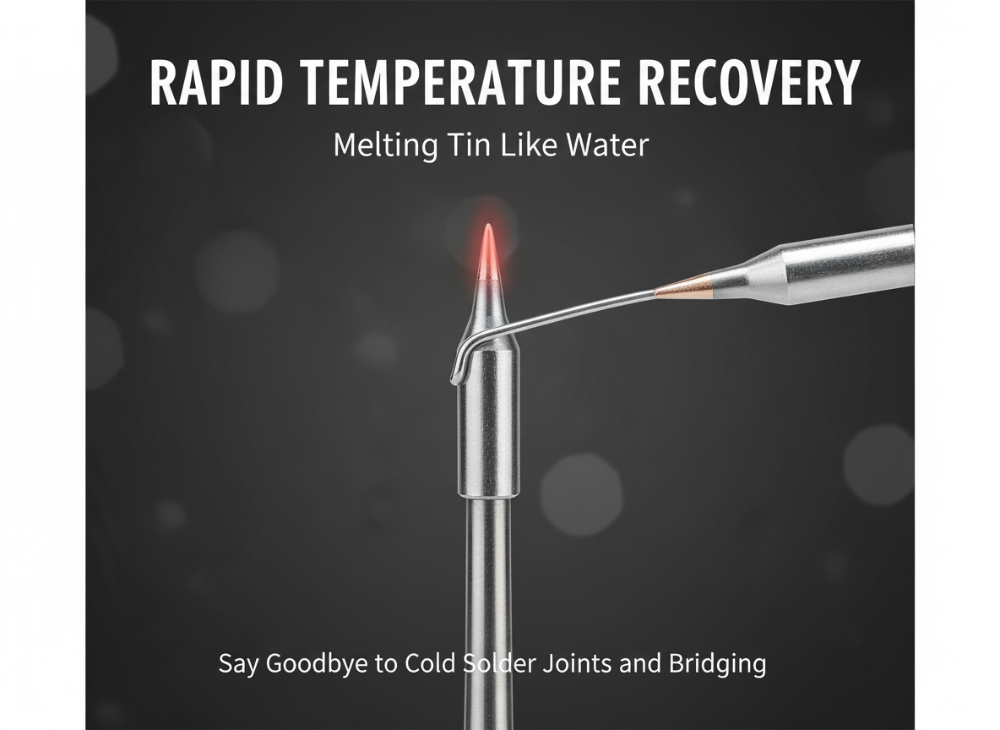

Heating core: Utilises aluminium nitride (AlN) ceramics – with six times the thermal conductivity of conventional alumina – to rapidly transfer heat from the Fe‑Cr‑Al heating wire to the copper body. A K‑type thermocouple sensor positioned close to the working tip delivers a thermal lag of just ~0.3 seconds, enabling ultra‑fast temperature recovery and stable soldering even on demanding ground planes.
Nano‑composite electroplating (120‑hour process):
Iron layer (250‑350 μm) – applied at 12 A/dm² for a dense, wear‑resistant crystal structure.
Nickel layer (8 μm) – prevents rust and corrosion.
Chromium layer – high‑density hard chrome (15 A/dm²) for superior oxidation resistance.
Tin layer (12 μm) on the working tip – ensures excellent wettability right out of the package
Performance, Longevity & Cost Savings

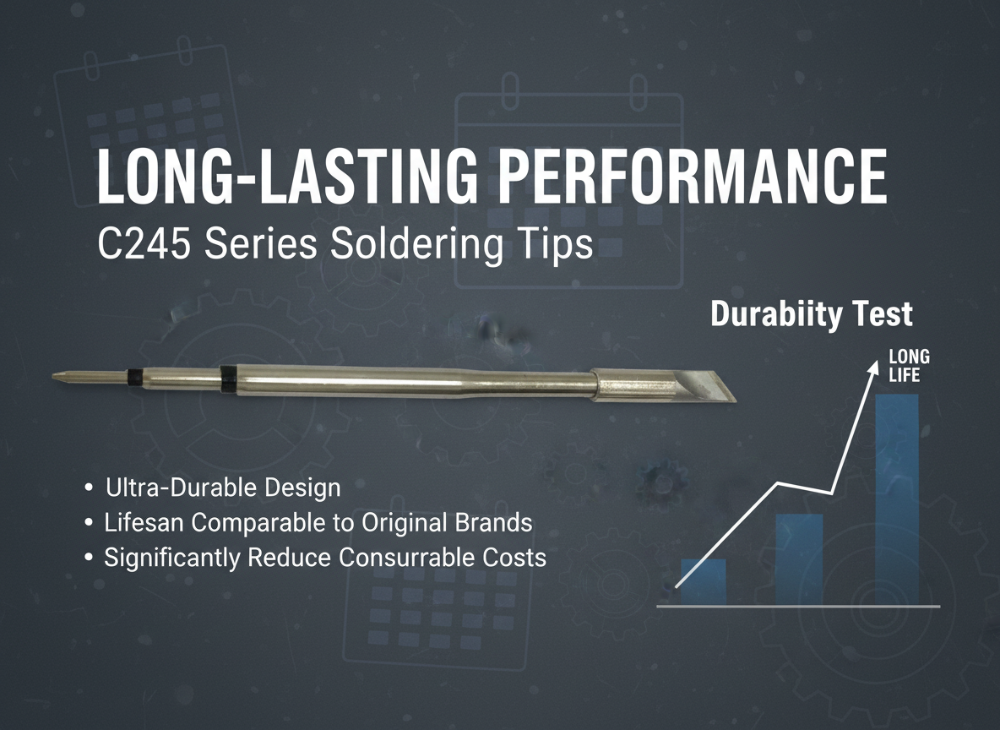

Service life: Achieve 20,000‑45,000 solder joints under typical PCB soldering conditions (350‑400°C) with proper maintenance. Actual life may vary depending on temperature, flux, and solder alloy.
Cost‑effective: Save 30‑50% compared to original JBC C245 tips without compromising on quality or reliability.
Consistent results: Low thermal lag and stable heat output reduce cold‑joint defects and rework, boosting production efficiency.
Compatibility & Dimensions
Compatible stations: CD‑2BHQE, CD‑2BQF, CD‑1BQF, CDE‑1BQA, and any JBC station using the T245 handpiece.

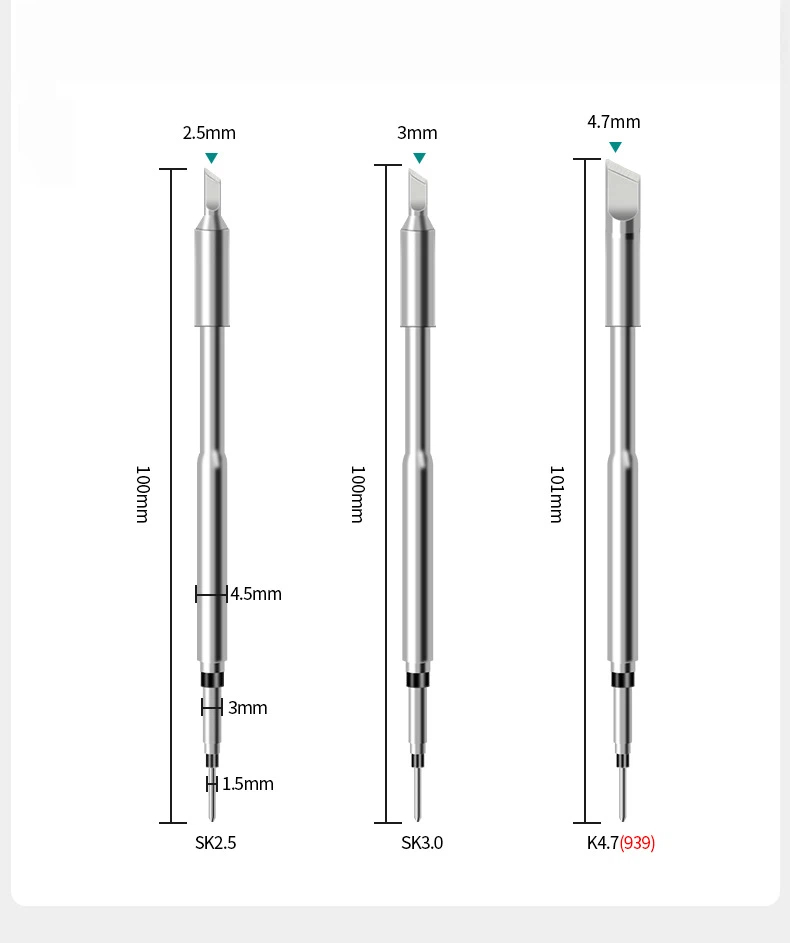

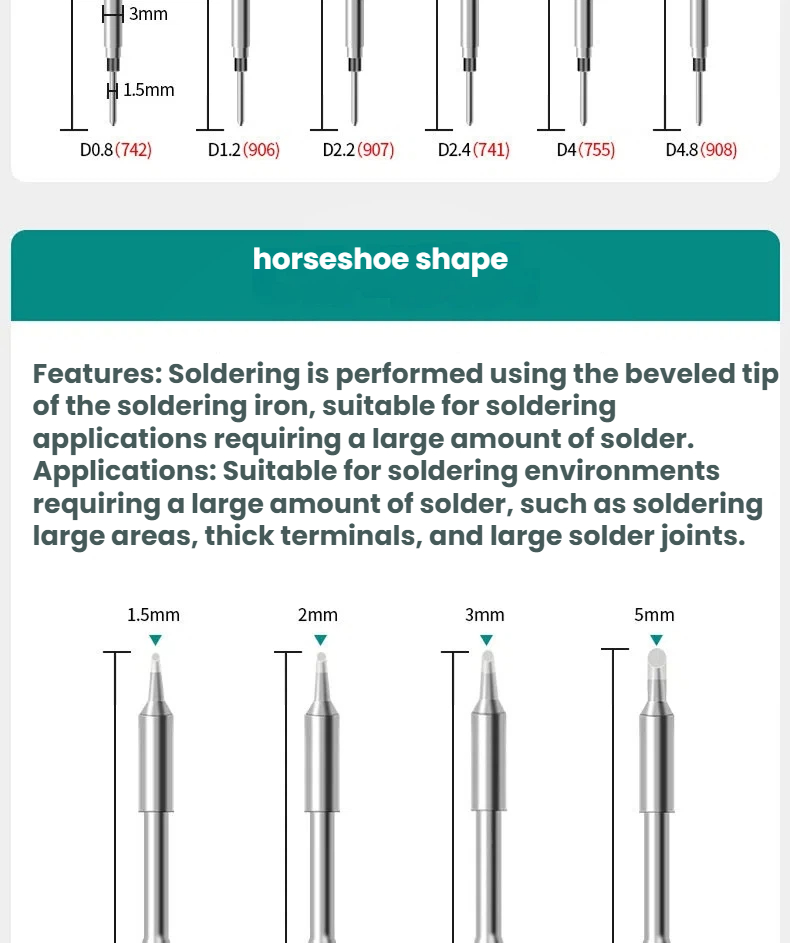

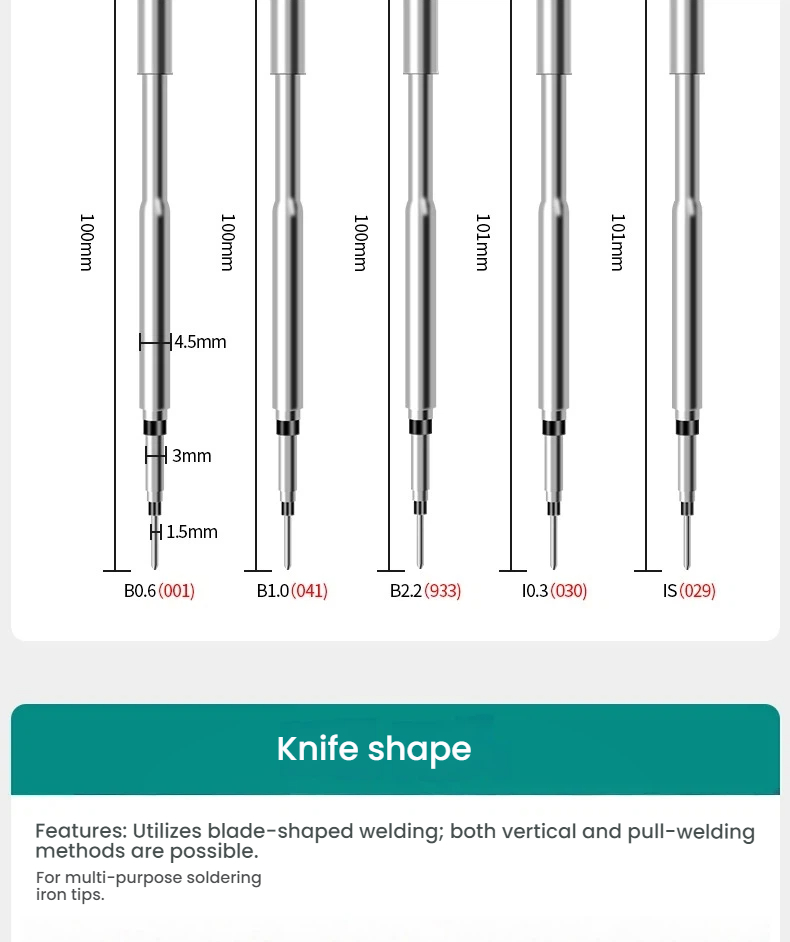

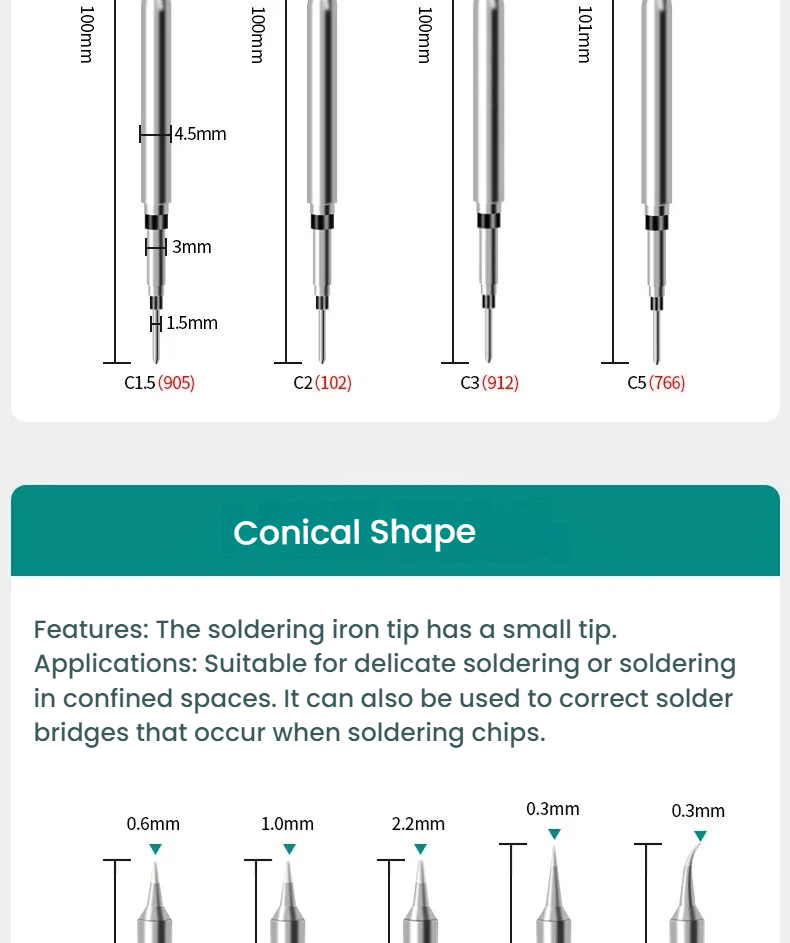

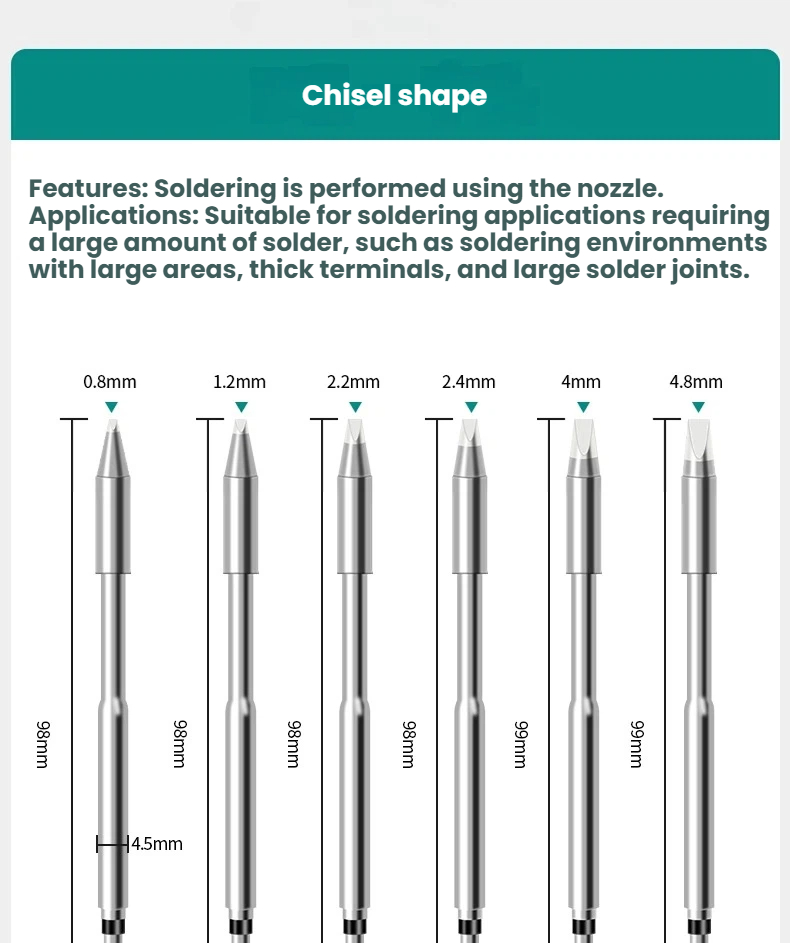

Dimensions: Outer diameter 6.2 mm, overall length 103‑105 mm – form‑fit replacement for original C245 tips.
Typical Applications

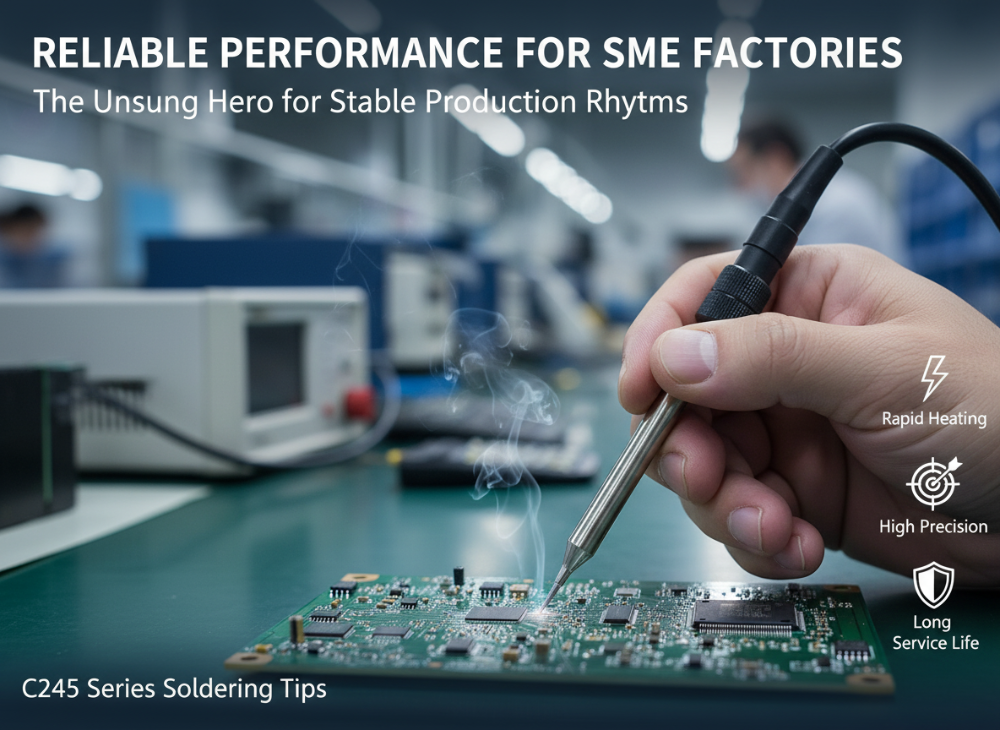

PCB assembly – through‑hole and SMD soldering on consumer electronics, telecom, and industrial control boards.
Precision repair – rework of fine‑pitch components, connectors, and flex circuits.
Field maintenance – durable construction withstands varied workshop conditions, supporting rapid fault correction and minimal downtime.
Simple Maintenance & Smart Replacement
Cleaning: Use a damp sponge for routine cleaning, or a brass wire ball (insert at an angle and rotate twice) to remove stubborn oxides. Never file or sand the tip.
Care: Coat the tip with fresh solder before shutting down. Keep temperatures moderate – lead‑free at 350±10°C, leaded at 320±10°C – to extend plating life.
Replace when: The working surface shows pits or holes, solder creeps up the body, heating becomes sluggish, or the tip turns permanently black and cannot be re‑tinned.
Why Choose Our Tips?
Quality materials – oxygen‑free copper + advanced ceramics + multi‑layer plating for industrial durability.
Proven savings – lower unit cost and longer life reduce total consumable spend.
Seamless compatibility – fits JBC T245 handles and all listed stations, no adapter needed.
Backed by rigorous QC – batch‑to‑batch consistency you can trust.
Order our C245 series soldering tips today and experience reliable, high‑performance soldering at a smarter price – perfect for production lines, repair shops, and professional engineers alike.
Are the C245 series soldering tips compatible with all soldering irons?
The C245 series soldering tips are specifically designed to fit the JBC T245-A soldering handle. Using these tips with other soldering irons may result in poor fit or performance. For optimal function, always pair them with the designated handle recommended by the manufacturer.
What materials ensure the durability of these soldering tips?
These soldering tips feature a stainless steel casing combined with nickel plating and electroplated alloys. This material composition reduces heat loss and enhances corrosion resistance, improving durability and providing stable thermal transfer critical for industrial soldering operations.
Can the soldering tips be customized for different applications?
Yes, Shenzhen Lingruixin Technology Co., Ltd. offers customization options including tip geometry, material composition, and thermal characteristics. Custom orders help accommodate specific requirements for professional soldering iron setups. Contact the supplier directly to discuss your project needs.
How does Shenzhen Lingruixin ensure stable supply for wholesale soldering iron components?
Lingruixin maintains disciplined manufacturing controls and efficient production cycles to deliver consistent capacity. This approach supports long-term wholesale soldering iron procurement with reliable availability, meeting industrial buyers’ demands for repeat orders and stable inventory management.
