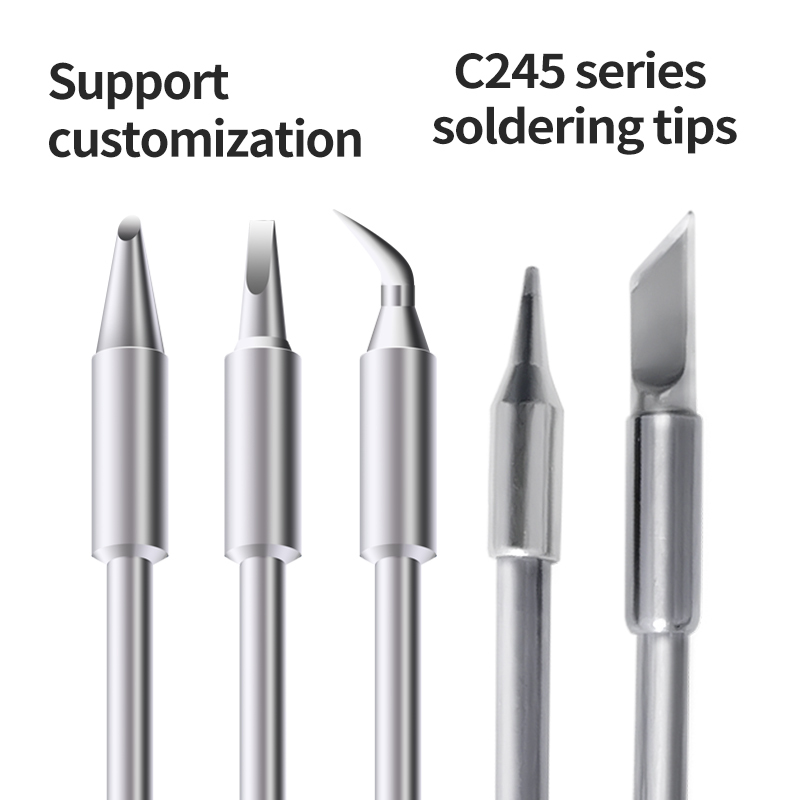

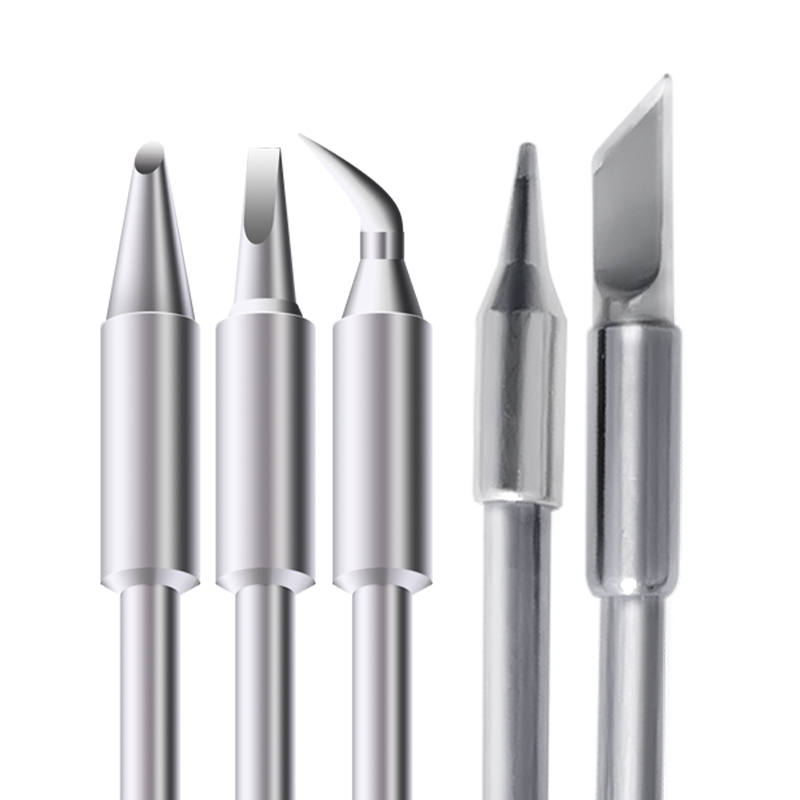

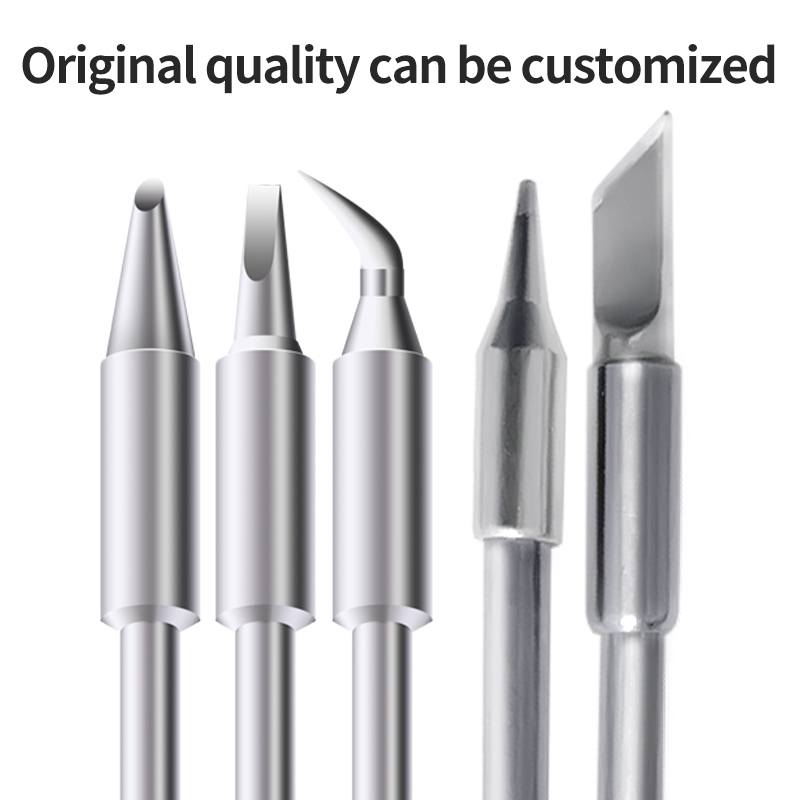

Internal heat universal C245 series soldering tips for JBC soldering Station

Product Highlights

Direct Replacement for JBC Stations: C245 series geometry matches original cartridge specifications.

Internal Heating Element with Stainless Steel Casing: Reduces heat loss and improves thermal efficiency to the solder joint.

Precision Dimensions: 6.2mm outer diameter, 98-100mm total length – ideal for general SMT and through-hole soldering.

Multi-Layer Plating: Nickel for corrosion protection, plus electroplated alloys for improved wear resistance and solder wetting.

Bulk & Custom Options: Volume discounts available. Custom tip shapes, lengths, or diameters offered for qualified buyers.

Product Description

 Material & Engineering Design
Each C245 soldering tip starts with a high-purity copper core for maximum thermal conductivity. The tip is then electroplated with a uniform iron layer to resist solder erosion, followed by nickel plating for rust and corrosion protection. A distinctive feature of this C245 series is the stainless steel casing over the internal heater assembly – this reduces heat loss along the barrel, directing more thermal energy to the tip contact point. The outer diameter of 6.2mm provides a balance of heat capacity and access, while the 98-100mm total length offers comfortable reach for most bench and automated soldering applications. Electroplated alloys on the working surface improve solder wetting and extend tip life.

 Application Scenarios on Your Production Floor
These C245 tips are designed for versatile soldering stations used in:

General SMT assembly and rework (consumer electronics, industrial controls)

Through-hole component soldering (connectors, transformers, large pins)

Lead-free and high-temperature soldering processes (SAC305, Sn99.3Cu0.7)

Automated soldering lines using JBC-compatible robotic stations

Service and repair centers requiring one tip type for multiple joint sizes
The 6.2mm diameter provides sufficient thermal mass for joints on multi-layer boards and ground planes, while the 98-100mm length allows operators to work comfortably without excessive overhang. The stainless steel casing ensures consistent temperature at the tip even during back-to-back soldering operations.

Product Value for Your Business (Cost, Consistency, Customization)
As a direct soldering tip manufacturer, we deliver three measurable advantages:

Lower consumable cost: Factory-direct pricing eliminates branded markups. Typical savings of 30–50% compared to original C245 cartridges.

Batch-to-batch consistency: Every production lot uses identical copper purity, plating thickness, stainless steel casing dimensions, and heater resistance. No unexpected thermal drift, cold spots, or early failure.

Customization without proprietary constraints: Need a modified tip shape, a different outer diameter, or a specialized plating for aggressive flux? We produce custom C245 soldering tips based on your drawings. Minimum order quantities apply.

For procurement and engineering teams, this means predictable quality, lower total cost of ownership, and a reliable second source for mission-critical consumables used across multiple production lines.
