Product Description – C115 Series Micro-Soldering Tips for JBC NT115
Ultra-Fine Tips for JBC NT115 & T115-A Handpiece
Engineered for the JBC NT115 soldering station and T115‑A handpiece, these C115 series tips are designed for ultra‑fine soldering applications. With an integrated heating element and thermocouple, they deliver rapid heat‑up (under 5 seconds to 350°C) and precise temperature recovery, making them ideal for micro‑soldering and SMT rework where precision and access are critical.
Material & Construction
Each tip features a C1100 oxygen‑free copper core (copper content ≥ 99.95%) with electrical conductivity ≥ 98.5% and thermal conductivity of approximately 390–400 W/(m·K). Manufactured using precision deep‑hole drilling, the inner wall achieves a surface roughness of ≤ Ra0.8, ensuring an optimal fit with the heating element for maximum heat transfer efficiency.
The heating element assembly utilises aluminium nitride ceramic for ultra‑fast thermal conduction, with a FeCrAl alloy heating wire offering superior resistance to deformation at high temperatures. A built‑in high‑precision K‑type thermocouple ensures extremely short thermal lag (approx. 0.3 seconds) for instant temperature response.
The 108‑hour nano‑composite electroplating process applies four functional layers:
Iron layer (18 A/dm²): Dense crystalline structure for superior corrosion and wear resistance; thickness approx. 250–350 μm
Nickel layer (10 μm): Prevents rust and protects the copper base
Hard chromium layer (15 A/dm²): Maximises oxidation resistance and prevents solder creep
Tin layer (12 μm): Pre‑applied to the working end for immediate wettability
Performance & Compatibility
Long Service Life: Delivers 20,000–35,000 solder joints under standard conditions (330–360°C, proper maintenance). Actual lifespan depends on temperature, flux, and solder alloy.
Cost‑Effective: Offers 30–50% savings compared to genuine JBC C115 cartridges, with consistent quality across all batches.

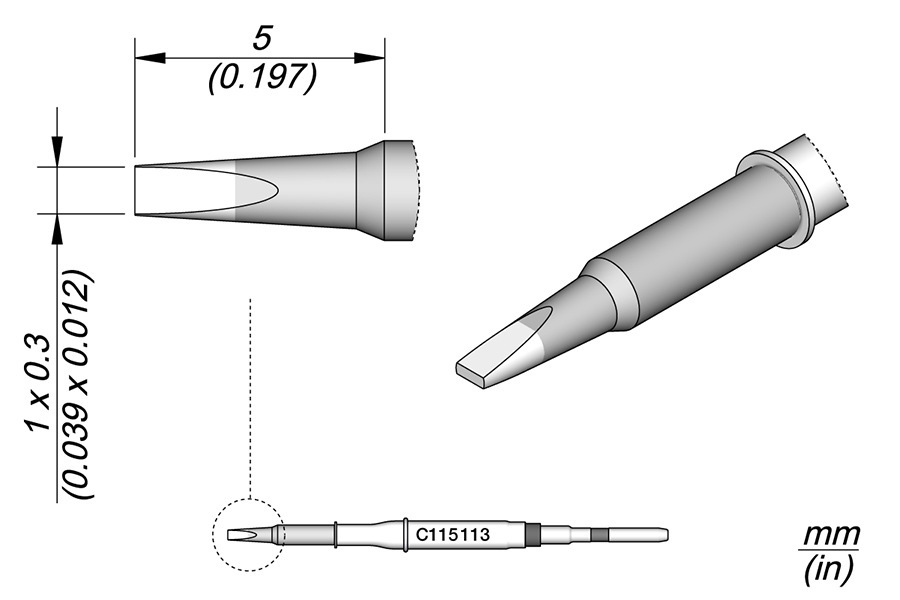

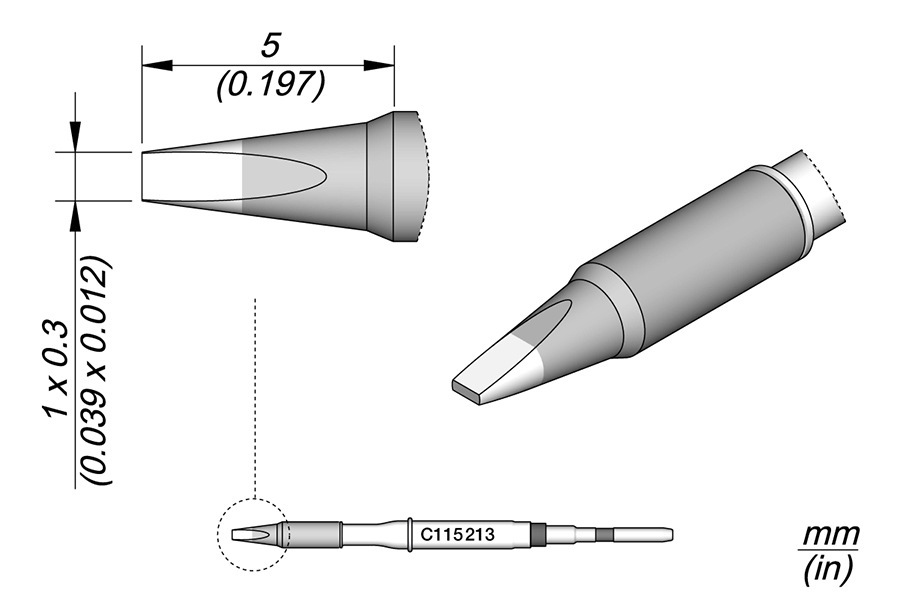

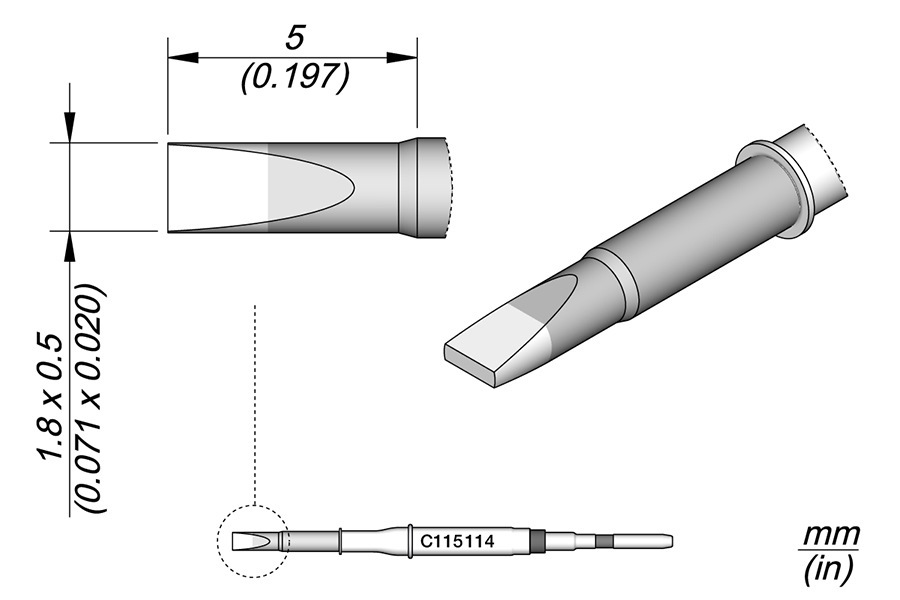

Precision Fit: Total length approx. 50 mm – ideal for accessing tight spaces between tall components.
Applications
Ideal for:
Ultra‑miniature passive components (01005, 0201, 0402)
High‑density IC pins and FPC connectors
Smartwatch / wearable device / hearing aid repair
Mobile phone motherboard wire repair and trace restoration
Maintenance & Replacement
To extend tip life:
Clean with a damp sponge or brass wire ball during use.
Apply a solder "tin cap" before powering off.
Use recommended temperatures: 350°C ± 10°C for lead‑free, 320°C ± 10°C for leaded solder.
Never use files or abrasives – these damage the plating.
Replace immediately if you observe:
Pits or holes on the working surface
Solder creeping up the barrel
Significant loss of heating efficiency
Permanent blackening that rejects solder
Bulk & Custom Orders
Volume discounts and custom tip shapes or plating specifications are available for qualified buyers. Contact us for technical datasheets or wholesale inquiries.
FAQ
What materials are used in these C115 series precision soldering tips?
We use oxygen-free copper cores with electroplated iron (wear resistance), nickel (corrosion protection), and chromium (anti-tin creep). The internal heater uses high-purity nichrome wire and a sealed ceramic thermocouple for accurate temperature feedback.
Do you offer custom C115 tip shapes or lengths?
Yes. As a custom soldering tip manufacturer, we can modify tip geometry (chisel, conical, bent, knife, hoof), diameter, or total length. Provide a drawing or original sample. Custom orders require minimum quantity – contact our sales team for specifications.
Will these tips fit my JBC station?
Yes. Our C115 series precision soldering tip is compatible with JBC stations that accept standard C115 cartridges, including the JBC Nano series (e.g., NT115, NP115 handles). The 50mm length and internal heater design match original C115 specifications.
How does service life compare to original JBC C115 tips?
Under identical soldering conditions (350°C, continuous use on lead-free solder), our tips deliver comparable or longer life – typically 10,000 to 20,000 solder joints depending on tip shape and maintenance. We recommend a side-by-side trial on your production line to verify performance.
How should we maintain these tips for maximum life?
Keep the tip tinned when the iron is idle (use station sleep mode if available)
Clean with brass wire or a damp sponge – avoid abrasive files or tip cleaners
Use only compatible solders and fluxes (no aggressive halide fluxes)
Replace immediately if the tip becomes pitted, deformed, or cannot wet properly
Store unused tips in a dry, anti-static environment to prevent oxidation
We supply detailed maintenance guides with bulk orders. For automated soldering lines, schedule regular tip cleaning cycles.
