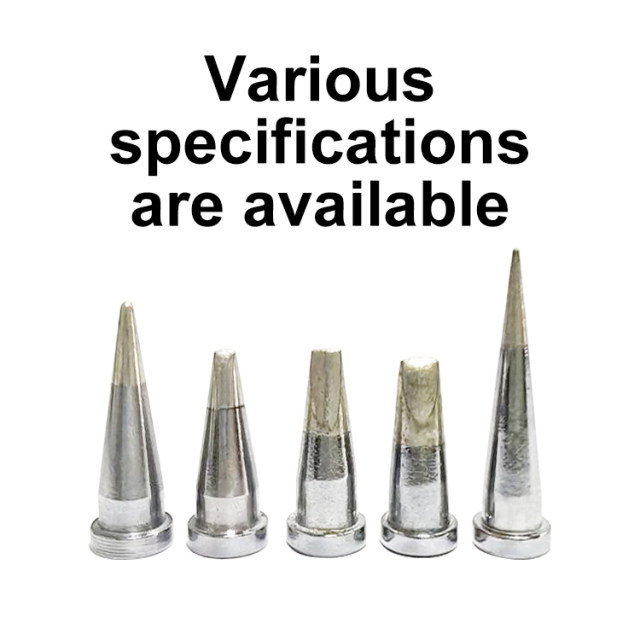

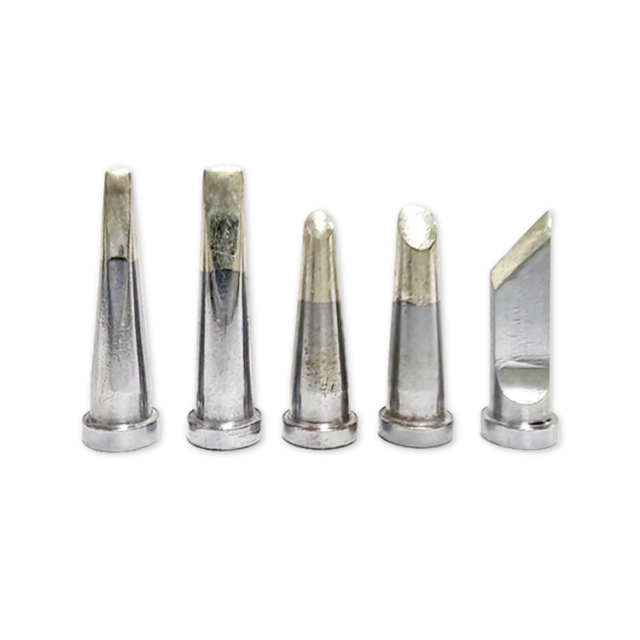

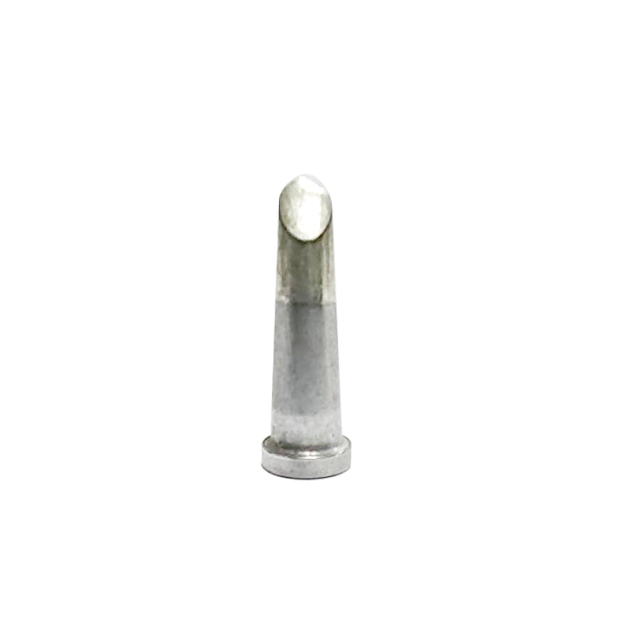

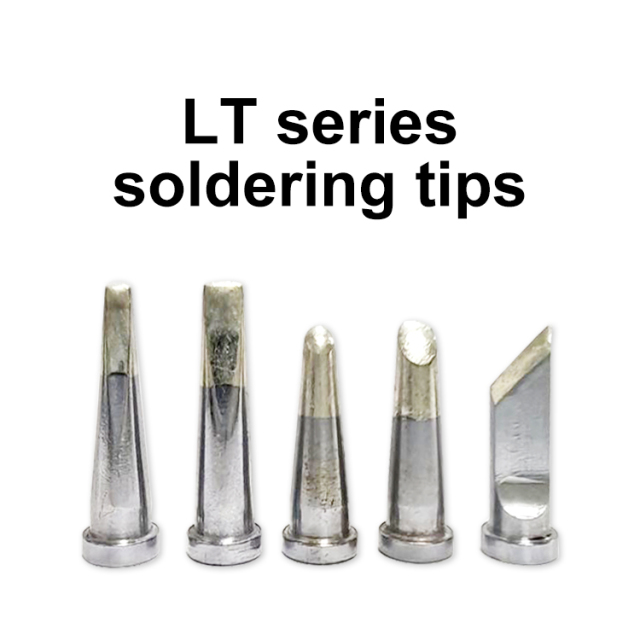

Product Description – LT Series Soldering Tips for Weller Stations
Precision Tips for Weller WSD81/WSD121 & WP80 Handpieces
Engineered for Weller WSD81 and WSD121 soldering stations, these LT series tips are also fully compatible with WP80, WSP80, and WXP80 soldering irons. Designed for professionals in electronics repair, PCB assembly, and production environments, they deliver consistent heat transfer and reliable performance for fine soldering applications.
Material & Plating
Each tip features a C1100 copper core (copper content ≥ 99.90%) with thermal conductivity of approximately 380–400 W/(m·K). Formed by cold heading, the core offers about 15% higher thermal conductivity than machined alternatives, ensuring rapid heat delivery to the joint.

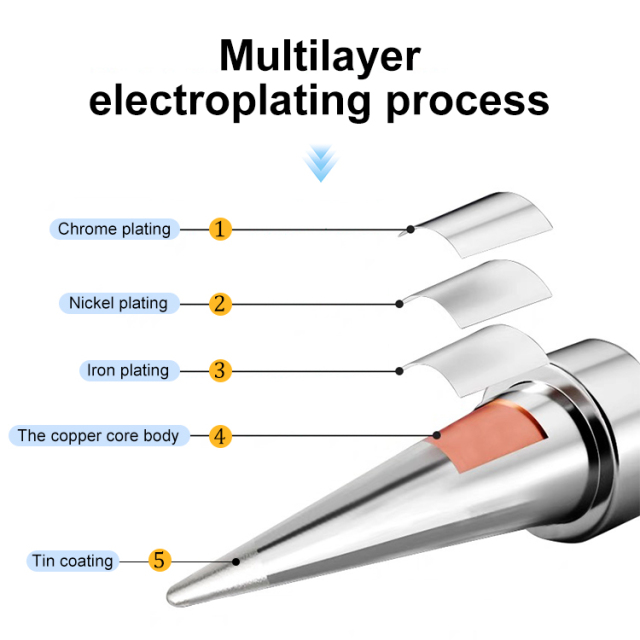

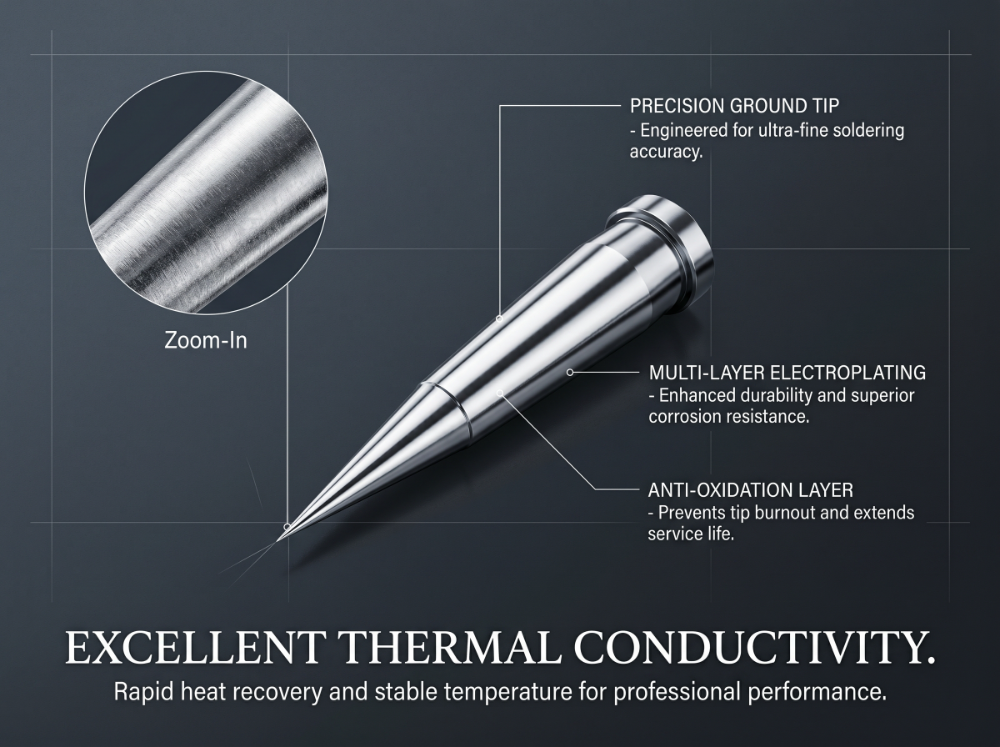

The 96-hour nano-composite electroplating process applies four functional layers:
Iron layer (12 A/dm²): Dense crystalline structure for superior corrosion and wear resistance
Nickel layer (8 μm): Prevents rust and protects the copper base
Hard chromium layer (18 A/dm²): Maximizes oxidation resistance and prevents solder creep
Tin layer (12 μm): Pre-applied to the working end for immediate wettability
Performance & Compatibility
Long Service Life: Delivers 20,000–38,000 solder joints under standard conditions (350–400°C, proper maintenance). Actual lifespan depends on temperature, flux, and solder alloy.
Cost-Effective: Offers 30–50% savings compared to genuine Weller LT tips, with consistent quality across all batches.

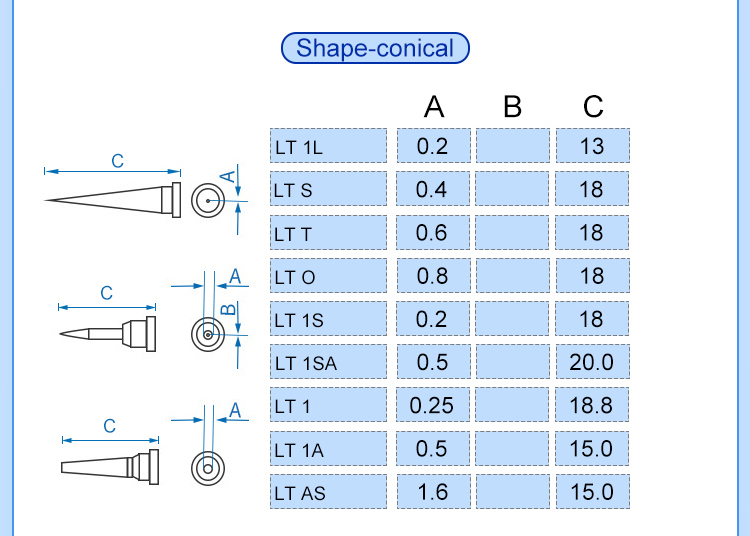

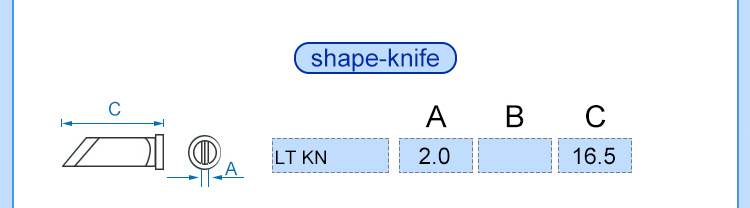

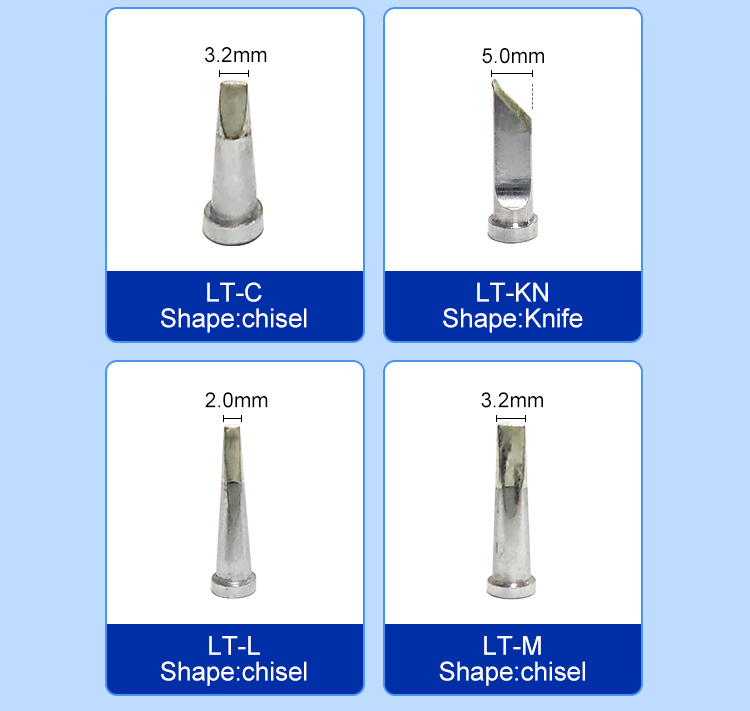

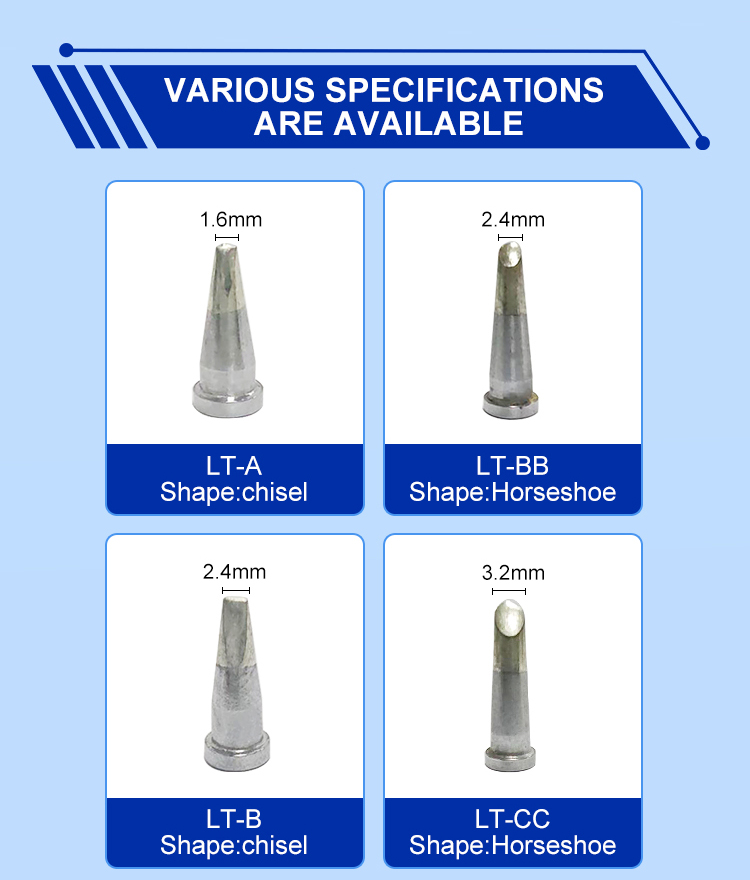

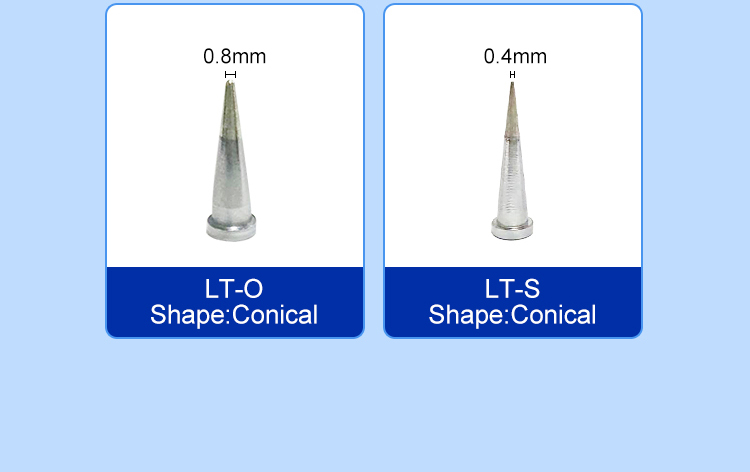

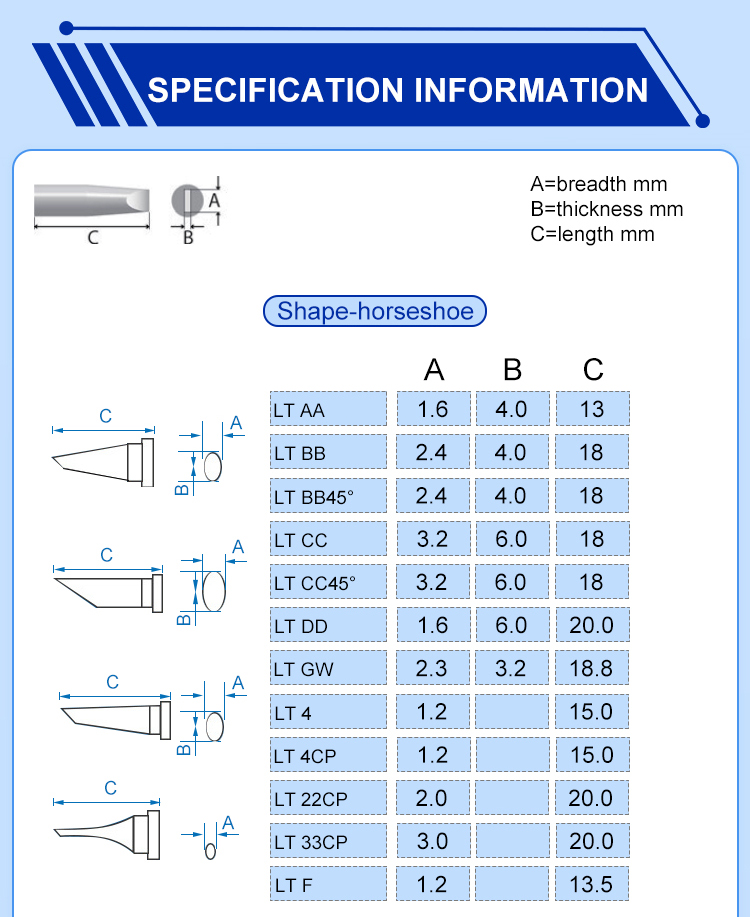

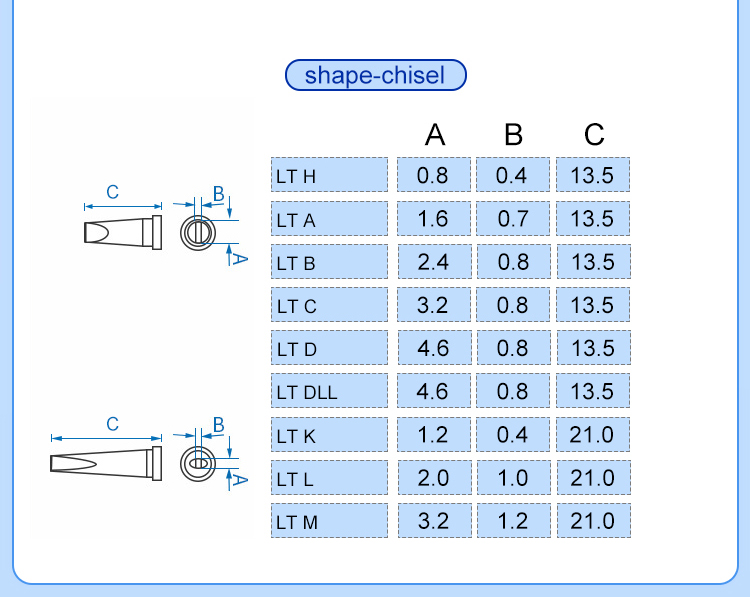

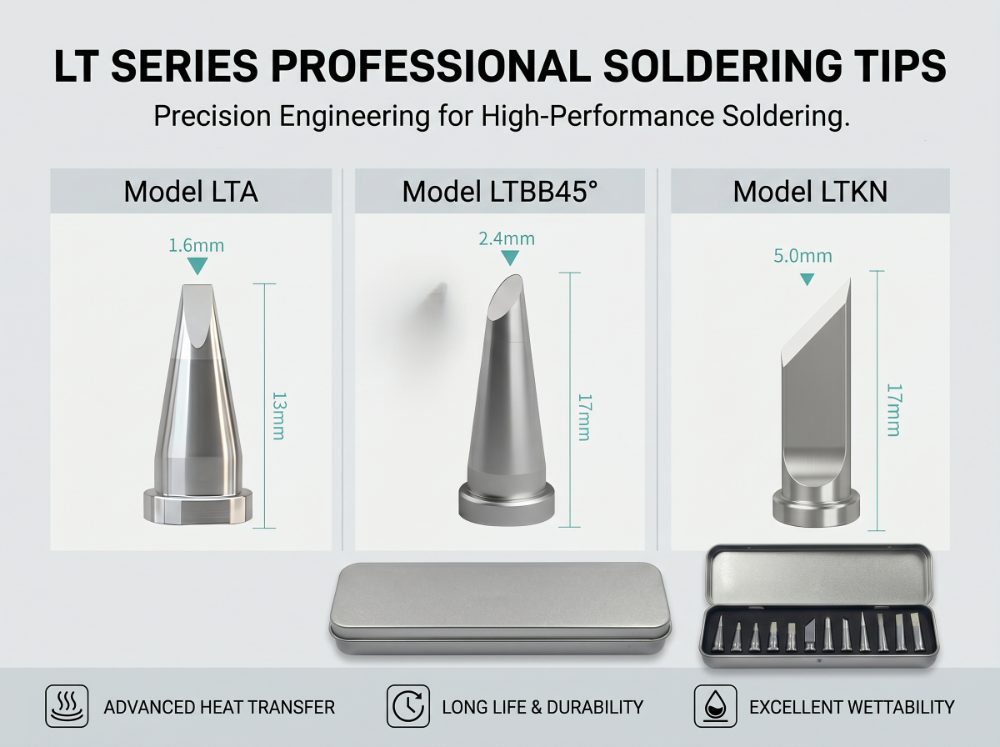

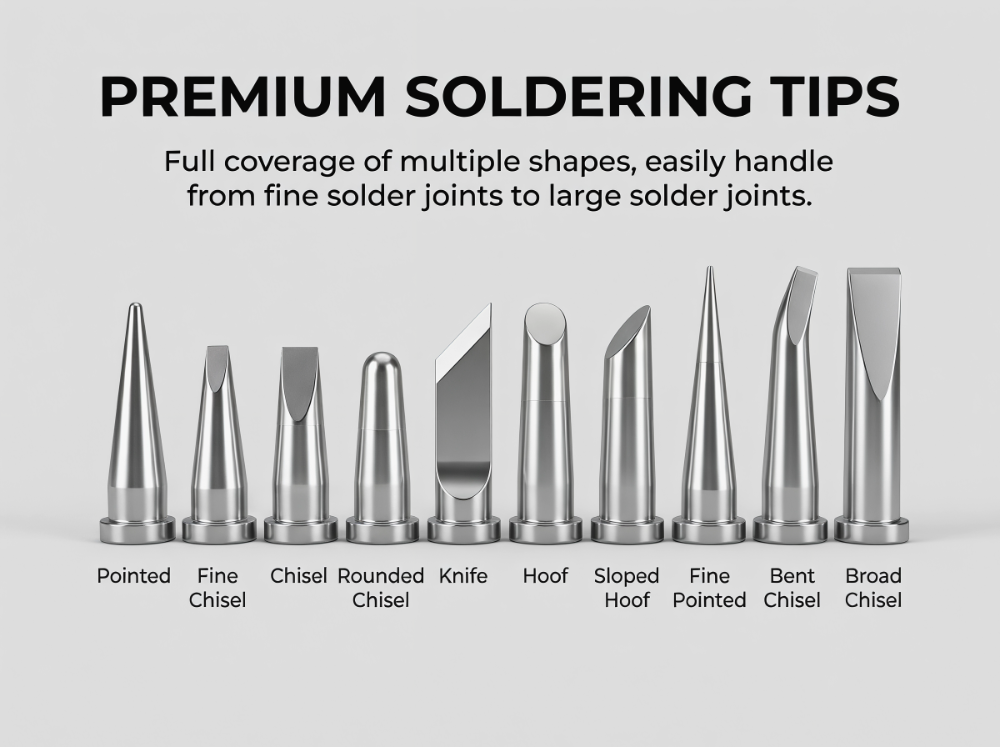

Precision Fit: Diameter 6.0 mm, total length approx. 13–18 mm (varies by tip shape) – ensures secure contact with Weller handpieces.
Applications
Suitable for PCB repair, fine soldering of small components, prototyping, and light production environments. Compatible with both lead-free (SAC305) and leaded (Sn63Pb37) soldering processes.
Maintenance & Replacement
To extend tip life:
Clean with a damp sponge or brass wire ball during use.
Apply a solder "tin cap" before powering off.
Use recommended temperatures: 350°C ± 10°C for lead-free, 320°C ± 10°C for leaded solder.
Never use files or abrasives – these damage the plating.
Replace immediately if you observe:
Pits or holes on the working surface
Solder creeping up the barrel
Significant loss of heating efficiency
Permanent blackening that rejects solder
Bulk & Custom Orders

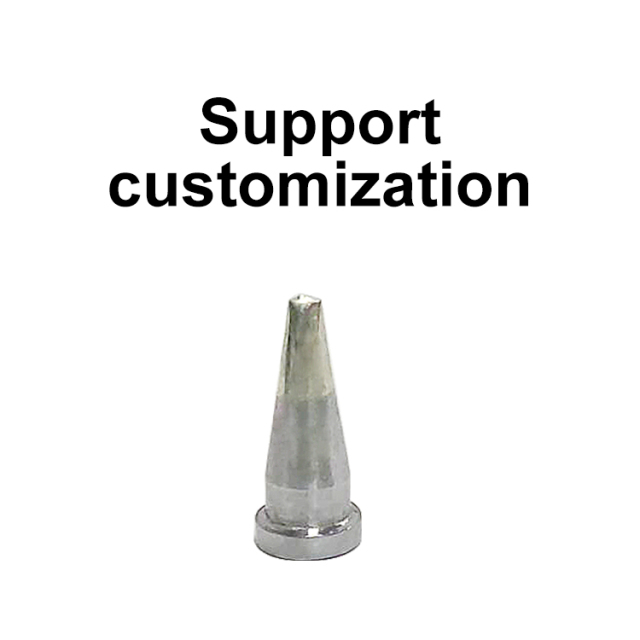

Volume discounts and custom tip shapes or plating specifications are available for qualified buyers. Contact us for technical datasheets or wholesale inquiries
Use Scenarios
Precision Repair and Prototyping in Electronics Manufacturing
In PCB assembly lines and electronic repair workshops, LT Series soldering iron tips provide essential performance for detail-oriented soldering tasks. These tips enable technicians to achieve consistent thermal profiles required for small pitch components, essential for prototypes and high-volume runs alike. Their durability supports frequent tip replacements without workflow disruption. Integration with WP80 temperature controlled soldering irons ensures adherence to thermal process thresholds, facilitating quality assurance compliance and reducing rework in production and maintenance environments.
On-Site Maintenance and Equipment Troubleshooting
Industrial service technicians rely on portable soldering irons equipped with LT Series tips for field maintenance of electronics and automated equipment. The tips’ reliable heat transfer and resistance to wear yield dependable performance in variable conditions. Their compatibility with professional soldering irons simplifies toolkits for service teams, fostering quicker fault isolation and repairs. This enables integration with maintenance workflows requiring rapid, stable soldering solutions, optimizing uptime for critical infrastructure and manufacturing support operations.
Are LT Series soldering iron tips compatible with all WP80 soldering stations?
Yes, our LT Series tips are specifically engineered for full compatibility with WP80 soldering stations to ensure optimal heat transfer and consistent soldering results throughout your production workflows.
Can you customize soldering tips to fit unique production requirements?
We offer flexible customization for our soldering irons and tips, including adjustments in material composition, tip geometry, and thermal performance, enabling you to tailor solutions that precisely meet your industrial application needs.
What is the recommended maintenance process for LT Series soldering iron tips?
While exact maintenance varies by use, we advise keeping LT Series tips clean from oxidation and residue, replacing worn tips promptly to maintain stable temperature control and effective heat transfer typical for professional electric soldering iron operation.
How do you ensure consistent quality and supply in your soldering iron products?
Our manufacturing incorporates rigorous quality checks, advanced materials, and a stable supply chain to deliver professional soldering iron components with consistent performance and availability, supporting long-term industrial production demands.
