Product Highlights
90W High Frequency Output: Sufficient power for PCB assembly, mobile phone repair, and general electronics work.
LCD Real-Time Temperature Display: Clear digital readout shows actual tip temperature – no guessing.
Dual Control Modes: Choose between rotary knob for quick adjustments or push-button for precise step-by-step setting.

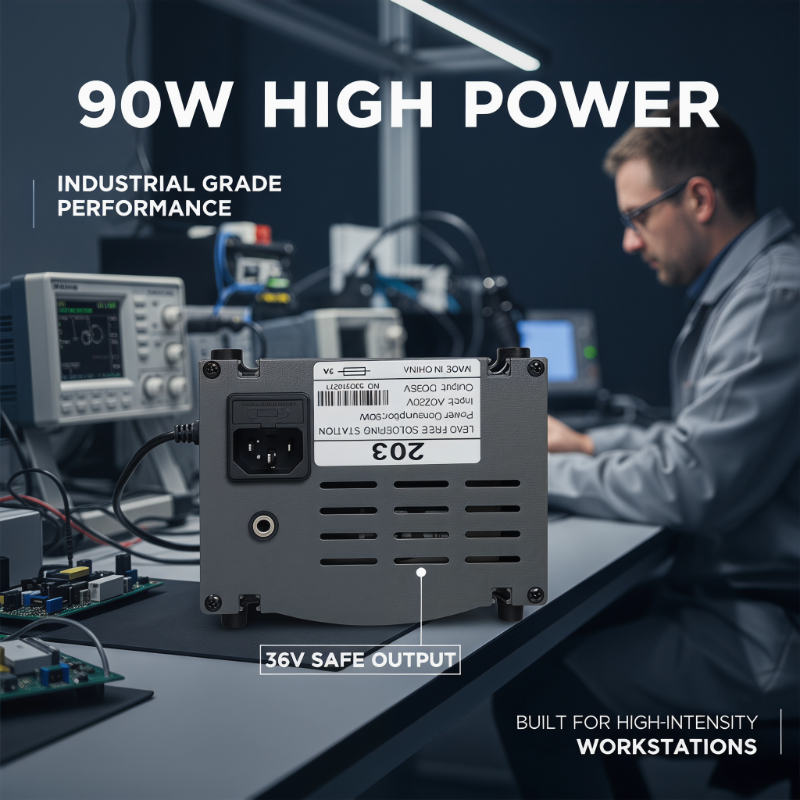

Safe 36V Output: Low voltage at the soldering iron enhances operator safety on the bench.
Rapid Heat-Up: High frequency technology reaches working temperature in seconds.
Bulk & Custom Options: Volume discounts available. OEM branding and custom voltage specifications offered for qualified buyers.
Product Description
Material & Engineering Design

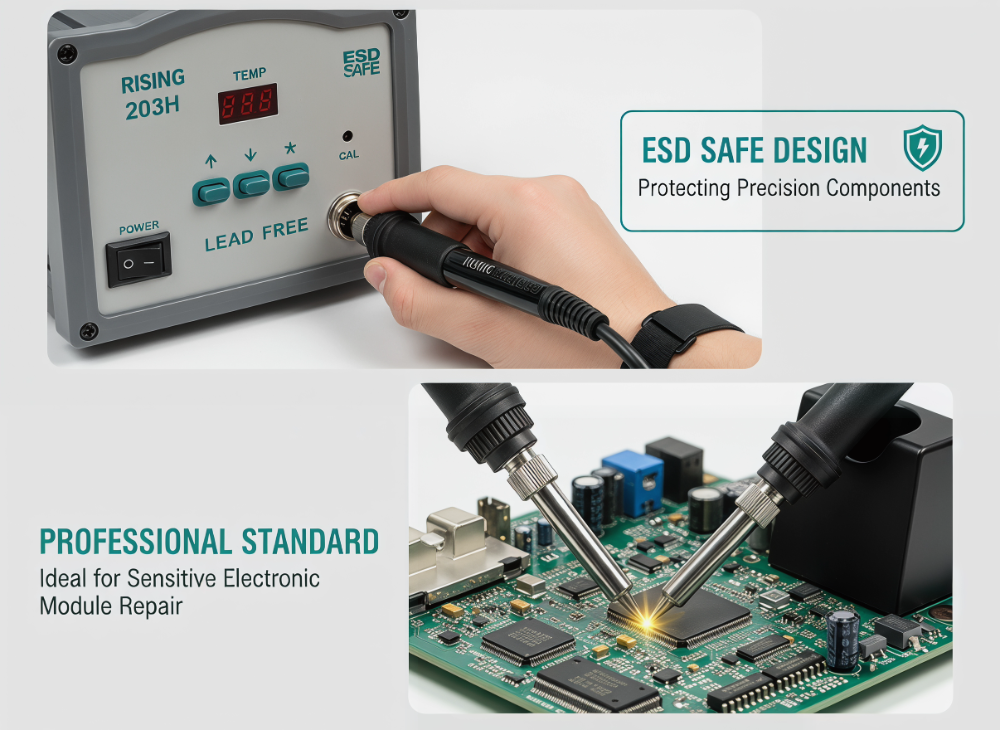

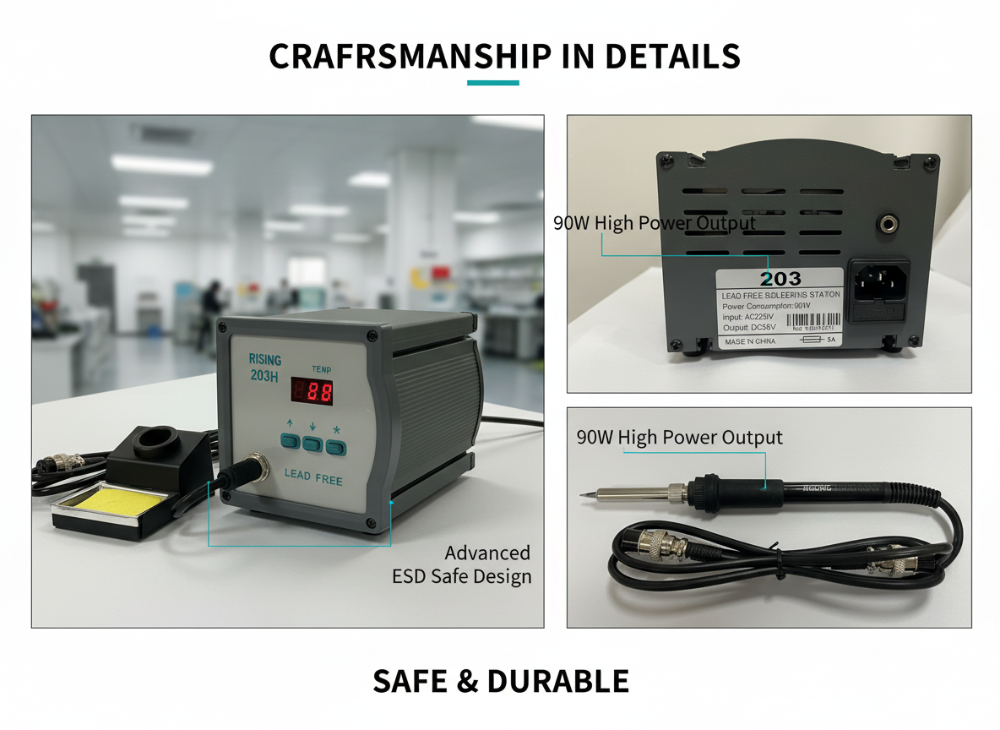

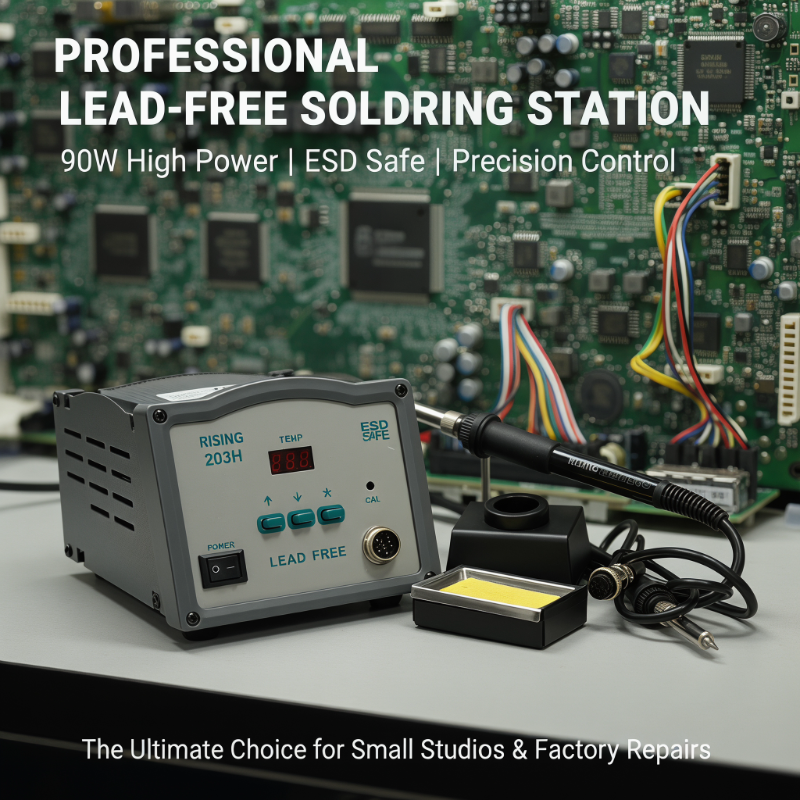

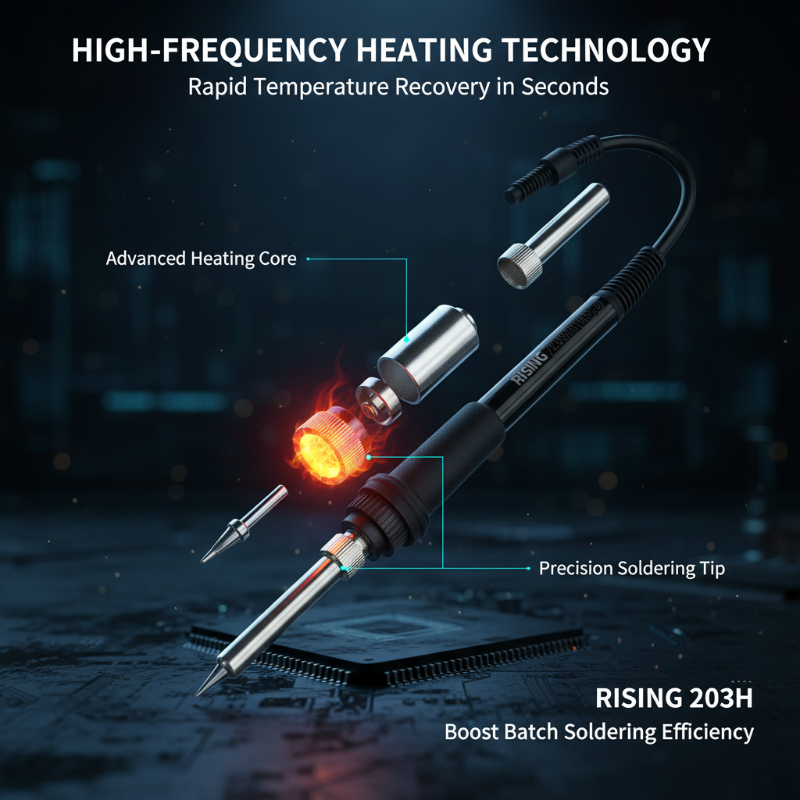

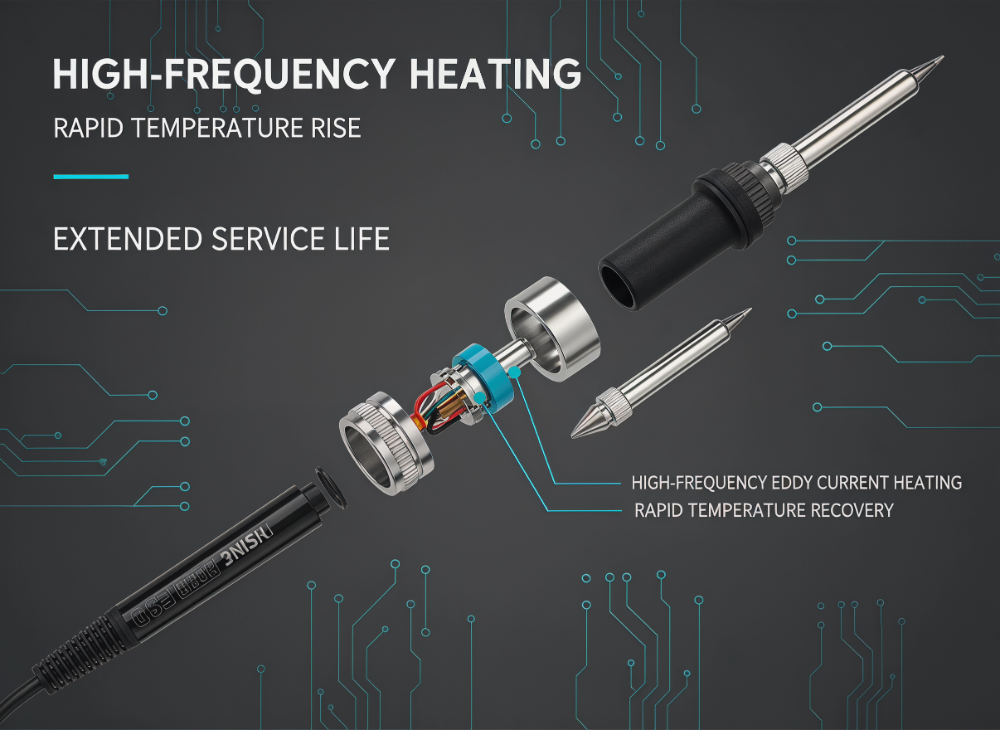

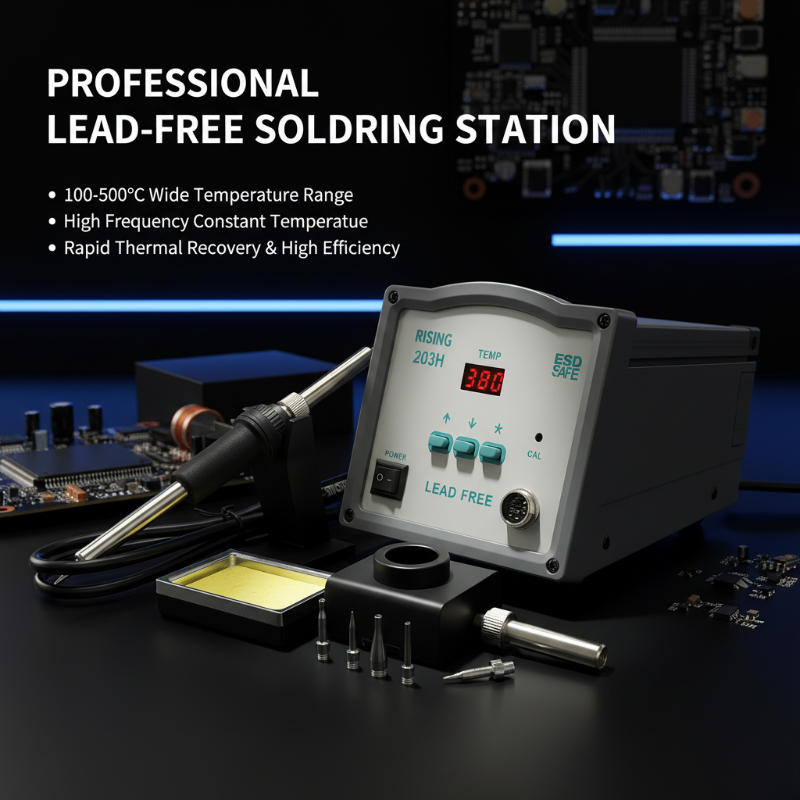

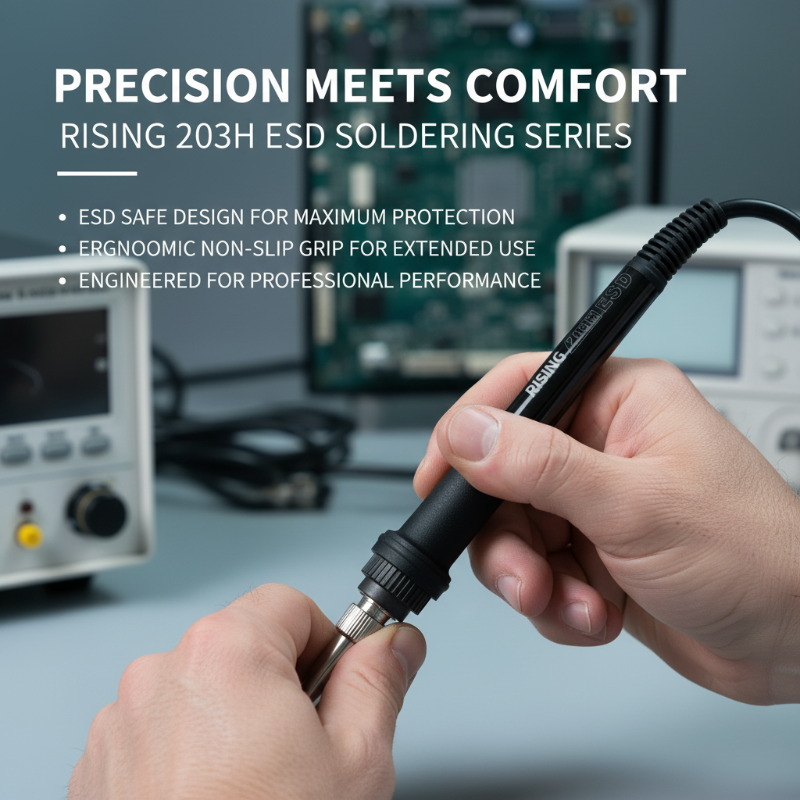

The 90W 203H high frequency soldering station is built with a high-efficiency resonant circuit and a durable ceramic heating core. The internal high-frequency transformer delivers stable 36V output to the soldering iron, isolating the operator from mains voltage. The LCD panel provides real-time temperature feedback with 1°C resolution, allowing operators to monitor tip temperature during active soldering. The housing uses heat-resistant, anti-static ABS material – suitable for ESD-sensitive environments. The soldering iron handle is ergonomically designed with silicone grip and a replaceable heating element. The dual control interface features a rotary knob for fast temperature sweeping (180°C to 480°C) and push-buttons for 1°C step adjustments – accommodating different operator preferences.
Application Scenarios on Your Production Floor or Repair Bench
This 90W high frequency soldering station is designed for a wide range of soldering tasks:
PCB assembly and rework for consumer electronics, industrial controls, and IoT devices
Mobile phone and tablet repair – sufficient power for logic boards and small ground planes
General electronics manufacturing requiring reliable, repeatable soldering
Lead-free soldering processes (SAC305, Sn99.3Cu0.7) needing stable 350-400°C operation
Repair centers and service benches handling mixed SMT and through-hole components
Technical training facilities where ease of operation and temperature visibility are important

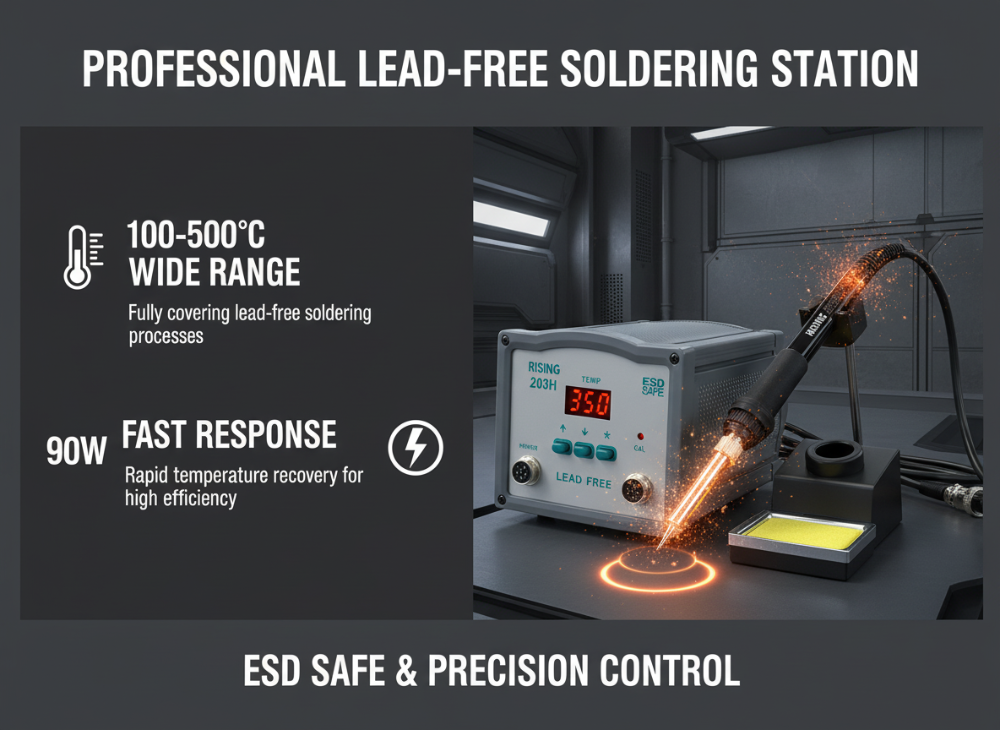

The adjustable temperature range (180°C to 480°C) allows operators to switch between fine SMT work (low 300°C range) and heavier through-hole joints (higher 380-420°C range). The LCD display reduces the risk of incorrect temperature settings – a common source of cold solder or component damage.
Product Value for Your Business (Cost, Reliability, Customization)
As a direct soldering station manufacturer, we deliver three measurable advantages:
Lower equipment cost: Factory-direct pricing eliminates distributor markups. Typical savings of 30–50% compared to branded 90W high frequency stations. For repair chains or production lines requiring multiple stations, this adds significant capital savings.
Reliable performance: Every station undergoes a 48-hour burn-in test and temperature calibration before shipment. The high frequency design ensures consistent power delivery without temperature droop. The dual control modes reduce operator error.
Customization without proprietary constraints: Need OEM branding (logo on housing), different input voltage (110V for North America), or custom packaging? We produce smart temperature control soldering stations based on your requirements. Minimum order quantities apply.
For procurement and engineering teams, this means predictable quality, lower total cost of ownership, and a reliable second source for high-frequency soldering equipment.
FAQ
What materials are used in the housing and heating element?
The housing is made of anti-static ABS plastic with heat-resistant coating. The heating element uses a high-frequency ceramic core with nickel-chromium alloy. The soldering iron handle uses silicone rubber for grip and high-temperature resistance. The LCD panel uses a standard digital display with backlight.
What are the dimensions and weight of this soldering station?
Please contact us for the detailed dimensional drawing and weight specifications. The compact benchtop design is suitable for standard ESD workstations with limited bench space.
How does the quality and temperature accuracy compare to branded stations?
Our 90W 203H high frequency soldering station uses closed-loop control with a magnetic sensor. Temperature accuracy is ±5°C. The LCD displays real-time actual temperature, not just set temperature. We offer a 12-month warranty against manufacturing defects. We recommend a side-by-side trial on your production line to verify performance.
Which soldering tips are compatible with this 203H station?
This 90W 203H high frequency soldering station is compatible with our 200M series soldering tips (4.0mm outer diameter, 2.0mm inner diameter, 41mm length) and other 203H-style cartridges. For custom tip compatibility, please provide your tip drawing.
How should we maintain this adjustable temperature soldering iron for maximum life?
Keep the tip tinned when the iron is idle – use the station’s auto-off feature (if available)
Clean the tip with brass wire or a damp sponge – avoid files or abrasives
Periodically check the heating element connection for oxidation
Calibrate the temperature every 6 months using a soldering tip thermometer
Keep the LCD screen clean – use a soft, dry cloth; avoid solvents
Store the station in a dry, dust-free environment when not in use
We supply a detailed maintenance guide with each bulk order. For repair centers with high daily usage, we recommend spare heating elements in stock. The dual control mode (knob and buttons) reduces wear on any single control interface.
