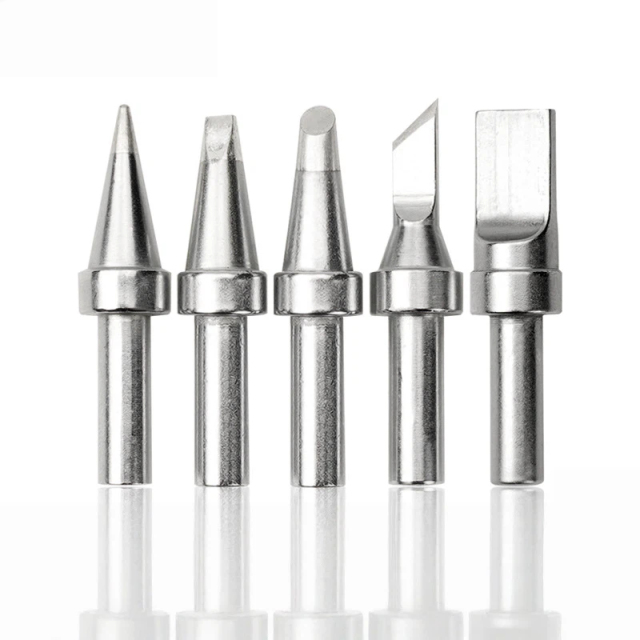

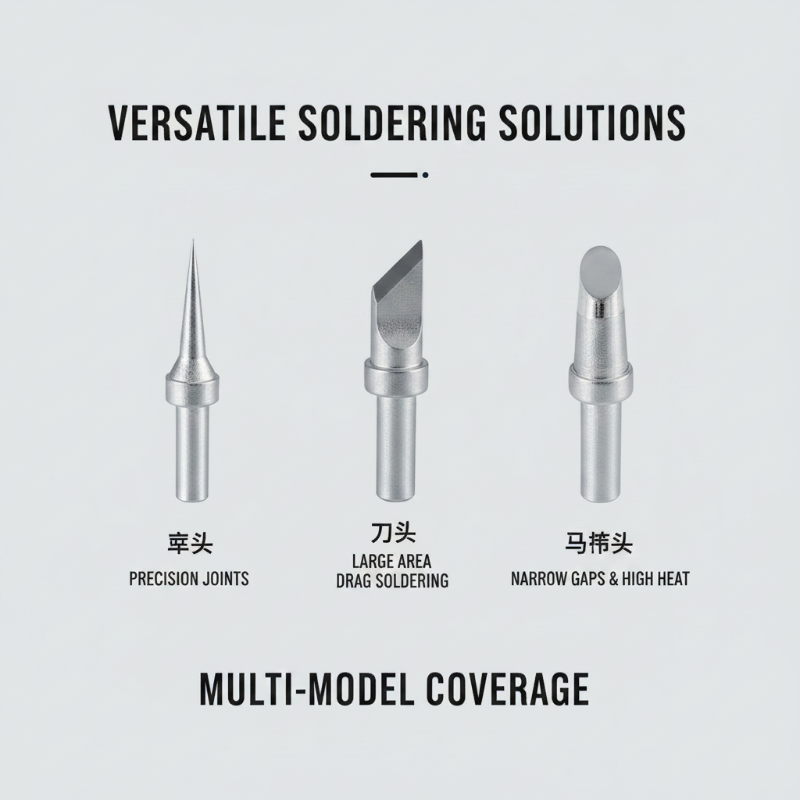

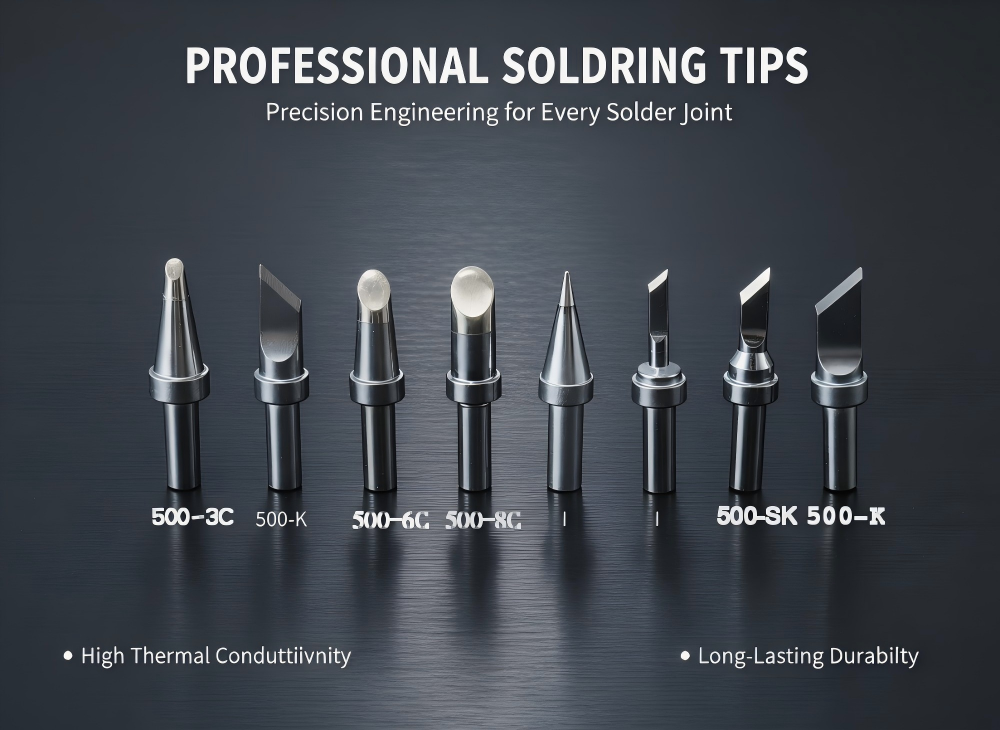

Product Description – 500 Series High Power Soldering Tips for Quick 205/205H
Heavy-Duty Tips for High Thermal Demand Applications

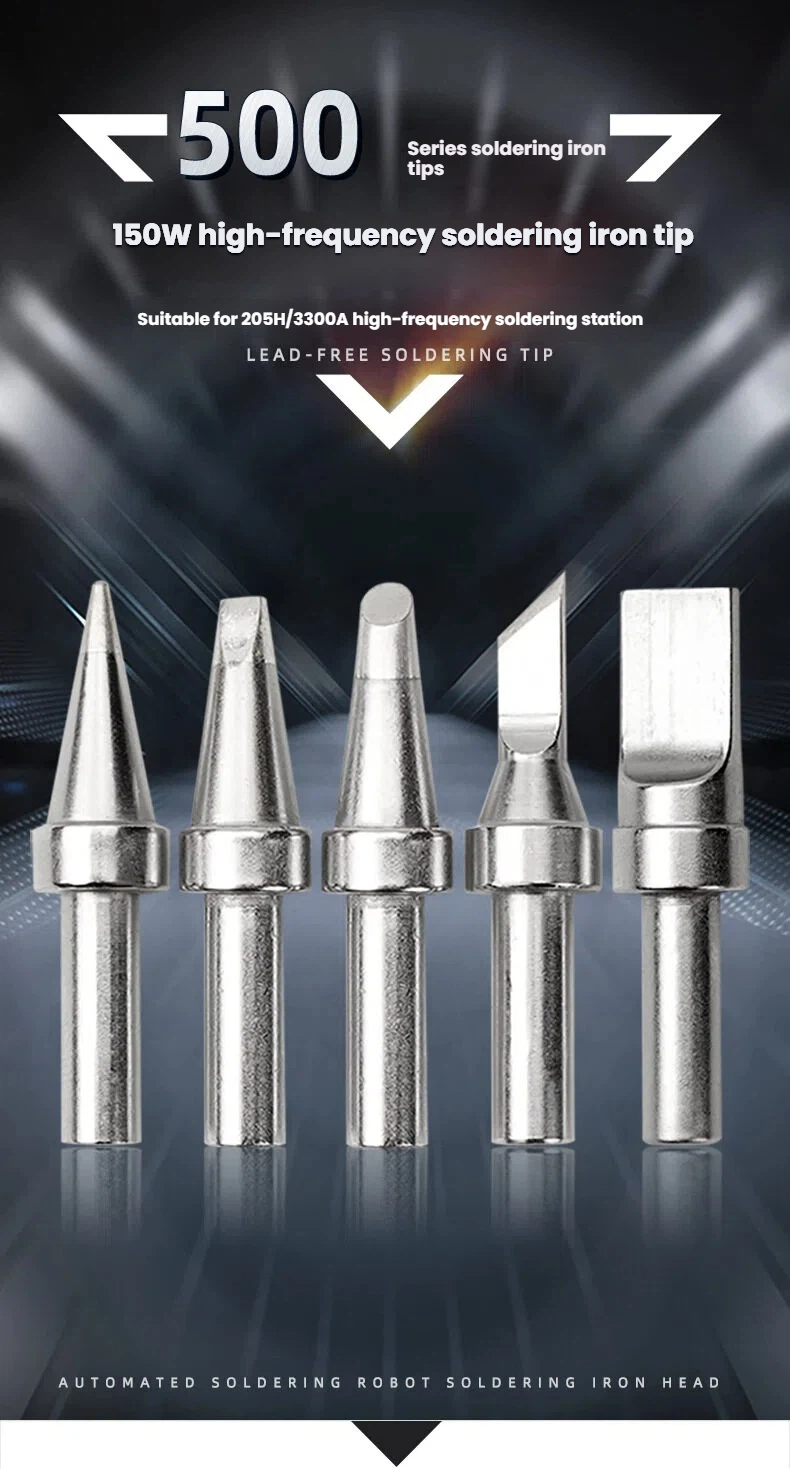

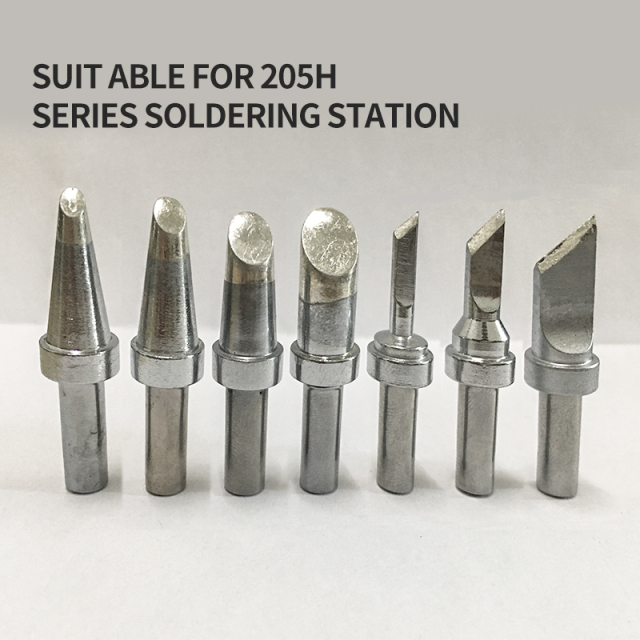

Engineered for Quick 205/205H and compatible 205H-series high frequency soldering stations, these 500 series tips deliver exceptional heat transfer and thermal reserve for demanding industrial soldering tasks. The high power design handles lead-free solder, multi-layer PCBs, ground planes, and large components without significant temperature drops.
Material & Plating
Each tip features a C1100 copper core (copper content ≥ 99.90%) with thermal conductivity of approximately 380–400 W/(m·K). Formed by cold heading, the core offers about 15% higher thermal conductivity than machined alternatives, ensuring rapid heat delivery to the joint.

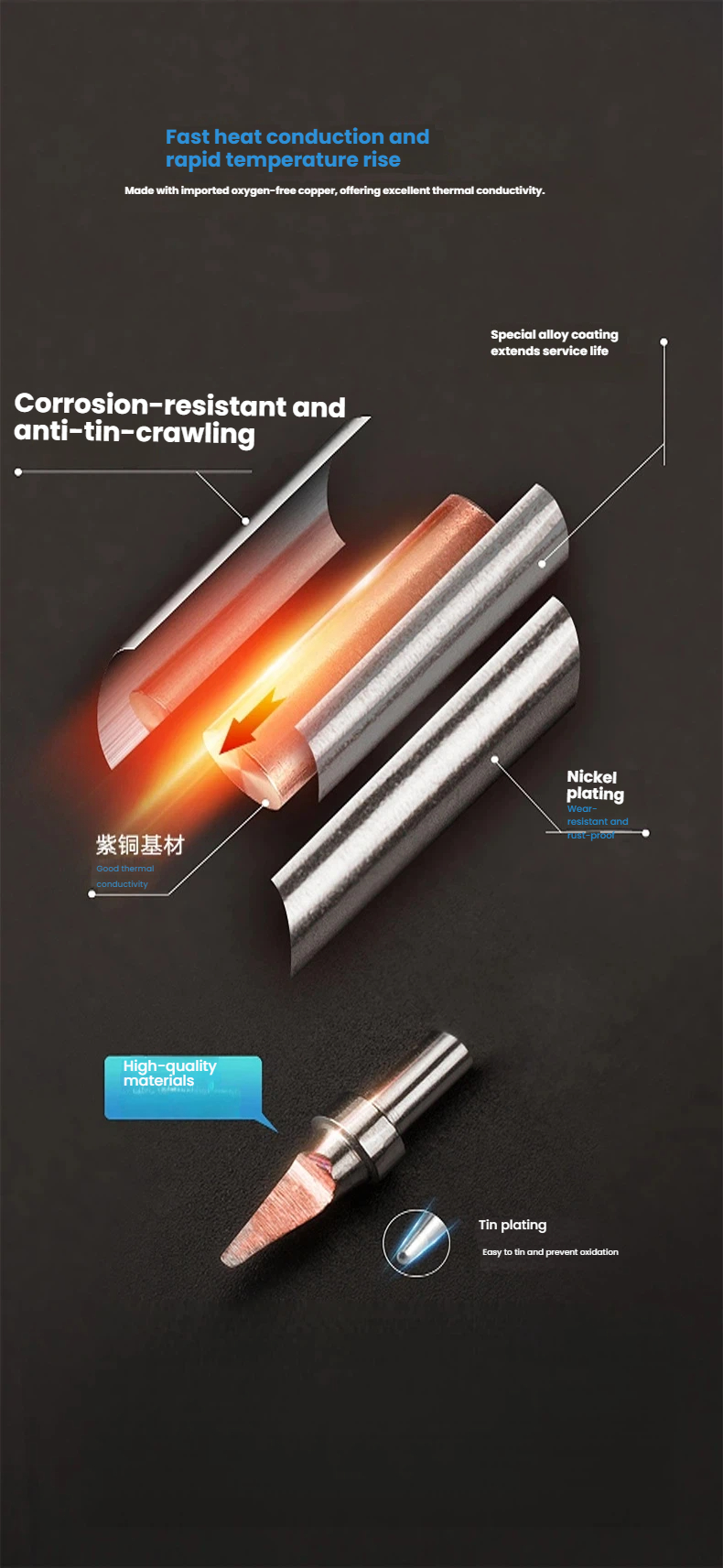

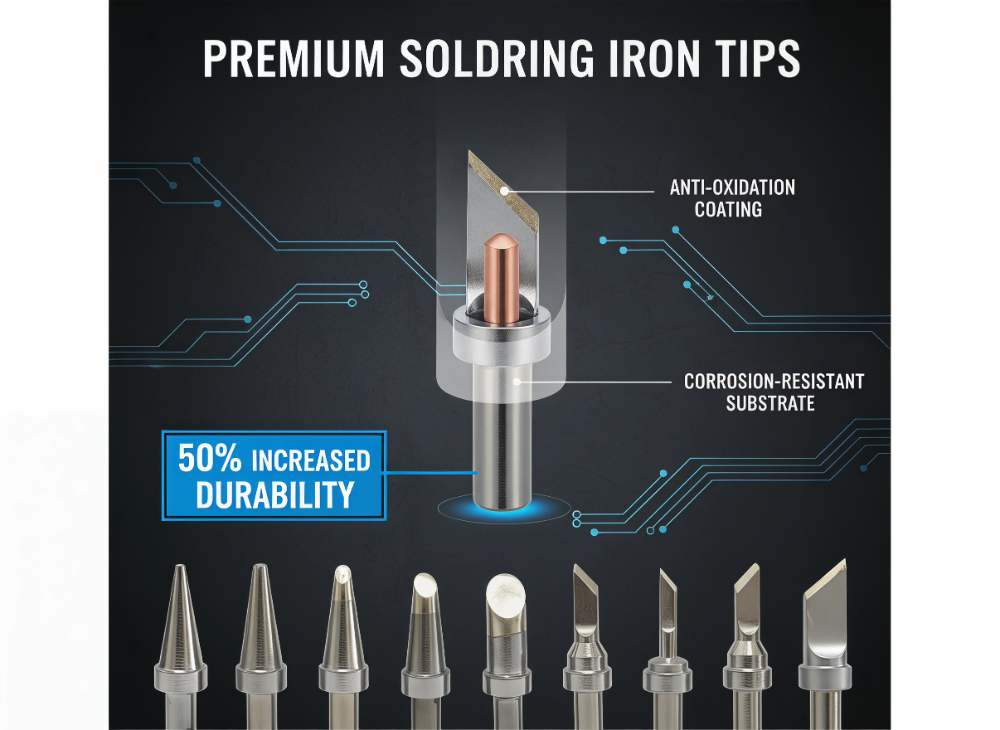

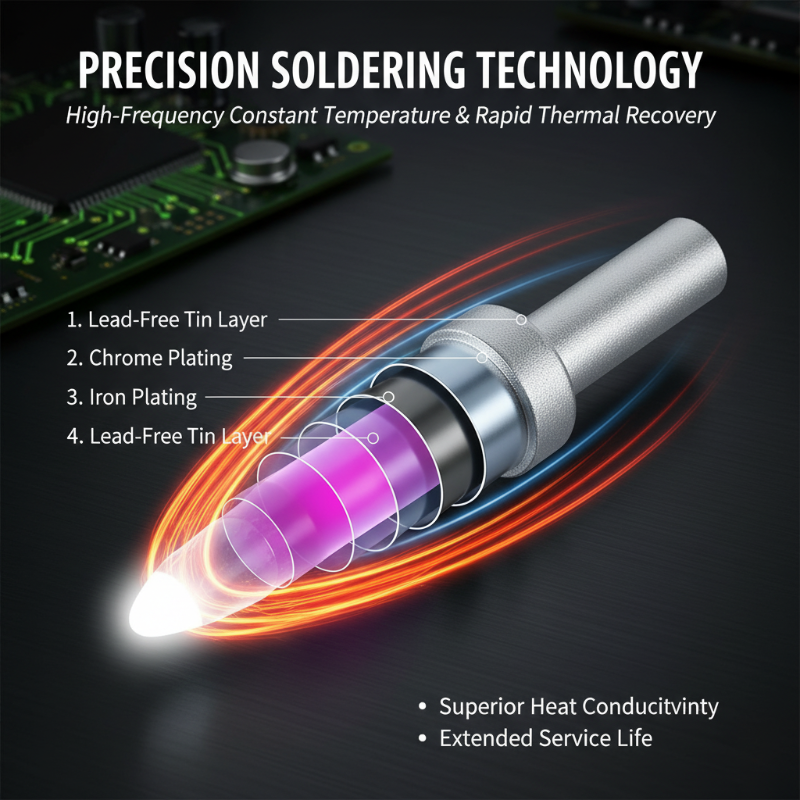

The 96-hour nano-composite electroplating process applies four functional layers:
Iron layer (10 A/dm²): Dense crystalline structure for corrosion and wear resistance
Nickel layer (8 μm): Prevents rust and protects the copper base
Hard chromium layer (18 A/dm²): Maximizes oxidation resistance and prevents solder creep

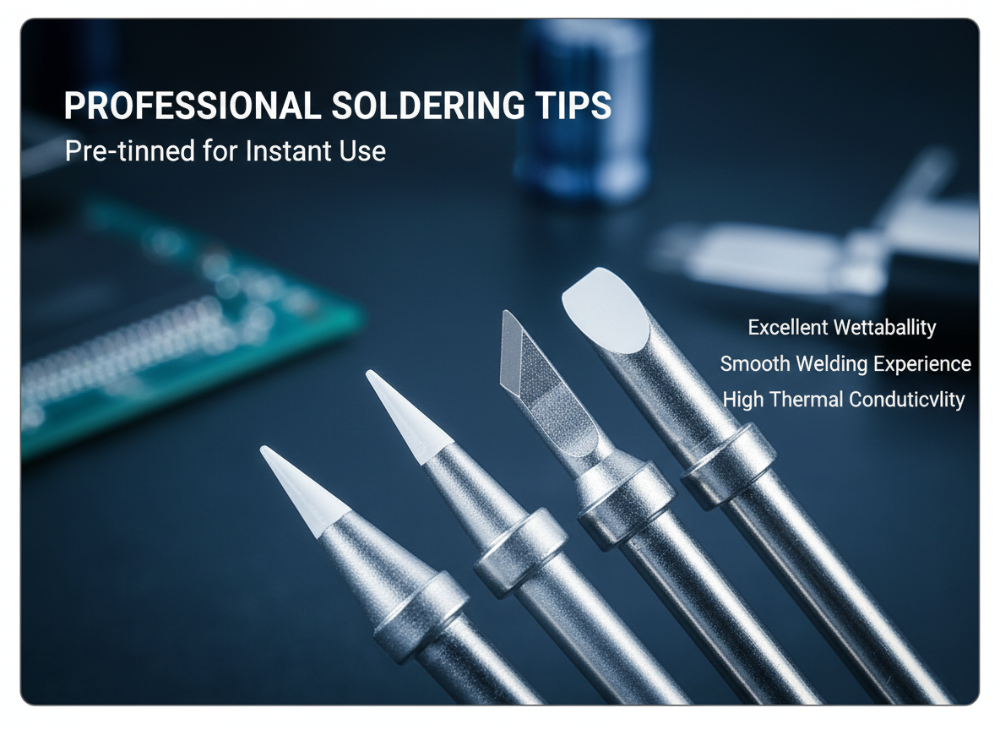

Tin layer (12 μm): Pre-applied to the working end for immediate wettability
Performance & Compatibility
Long Service Life: Delivers 20,000–40,000 solder joints under standard conditions (350–400°C, proper maintenance). Actual lifespan depends on temperature, flux, and solder alloy.
Cost-Effective: Offers 30–50% savings compared to genuine Quick 500 series tips, with consistent quality across all batches.

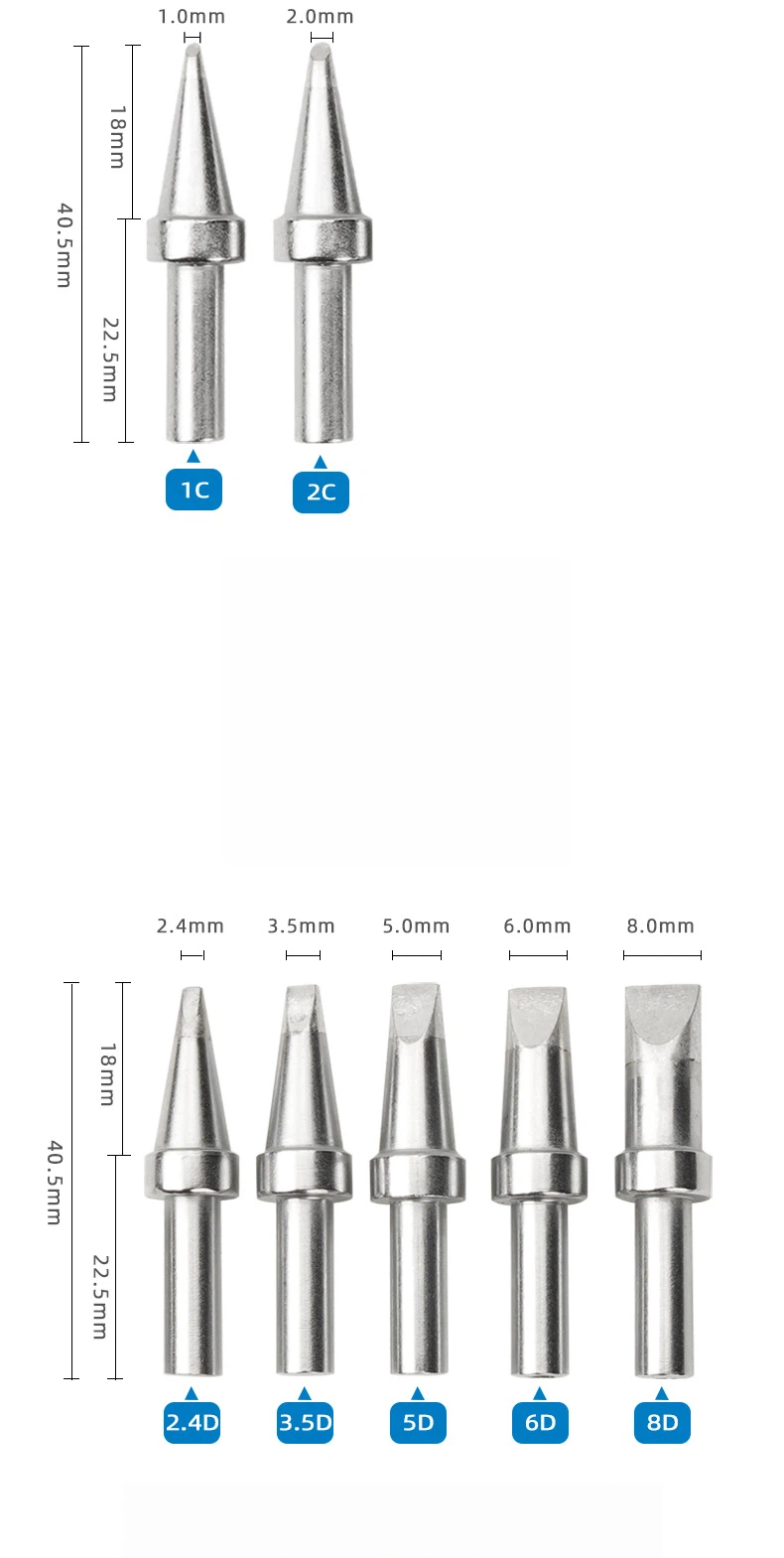

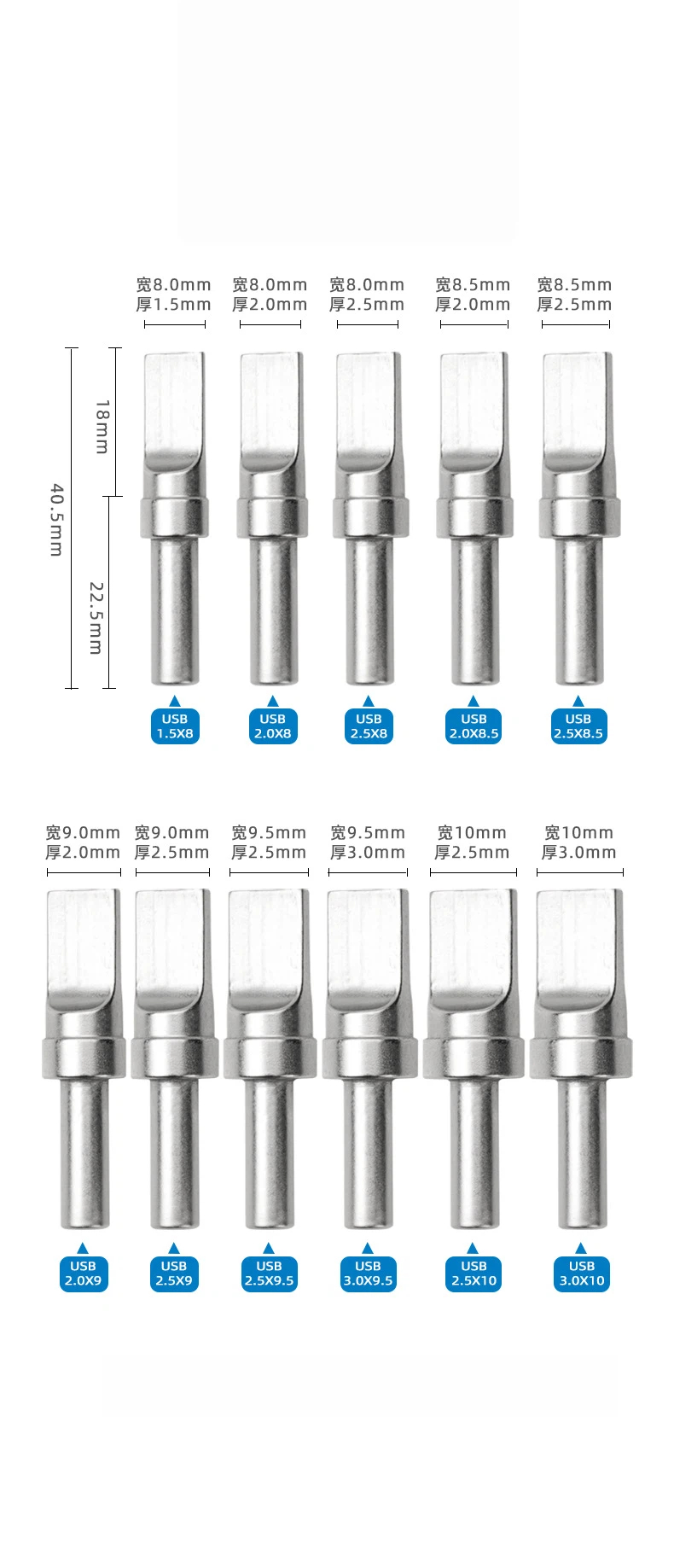

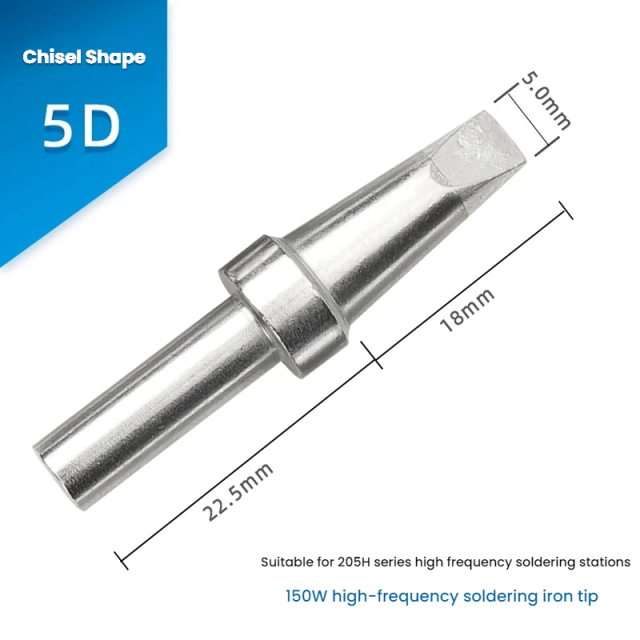

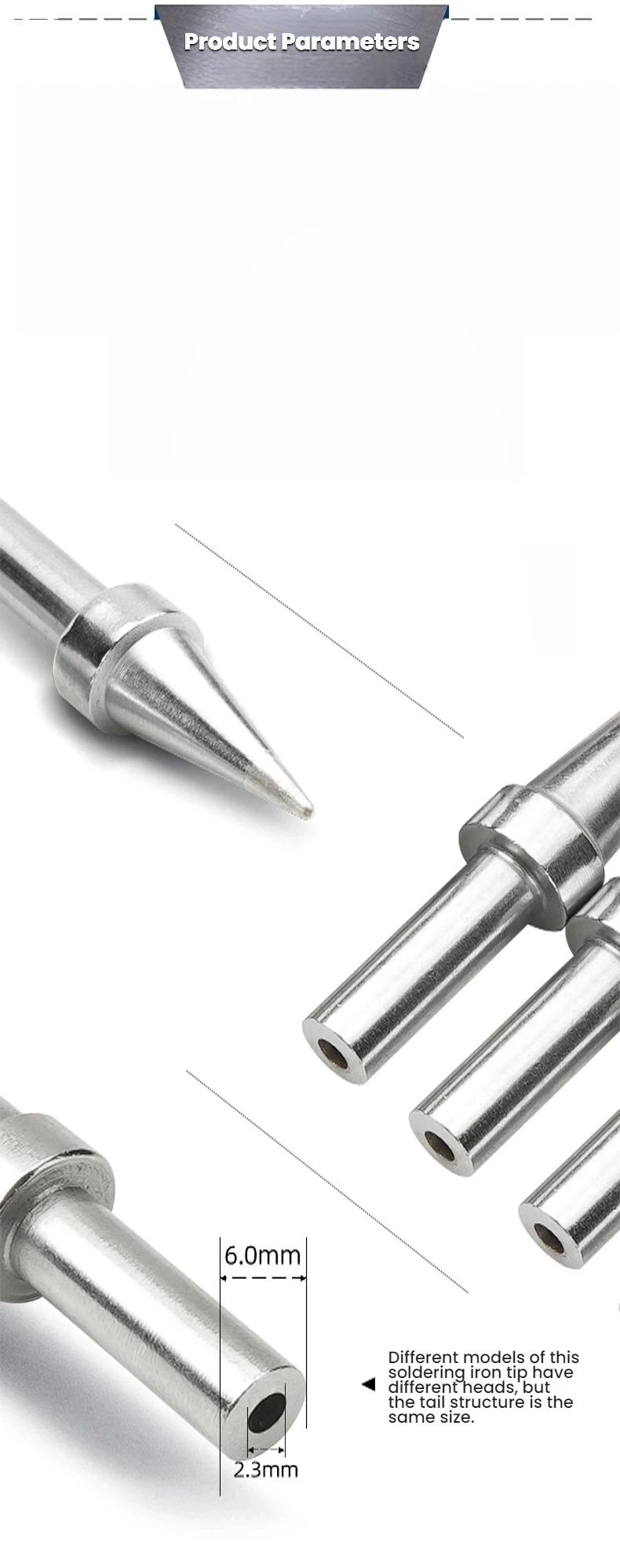

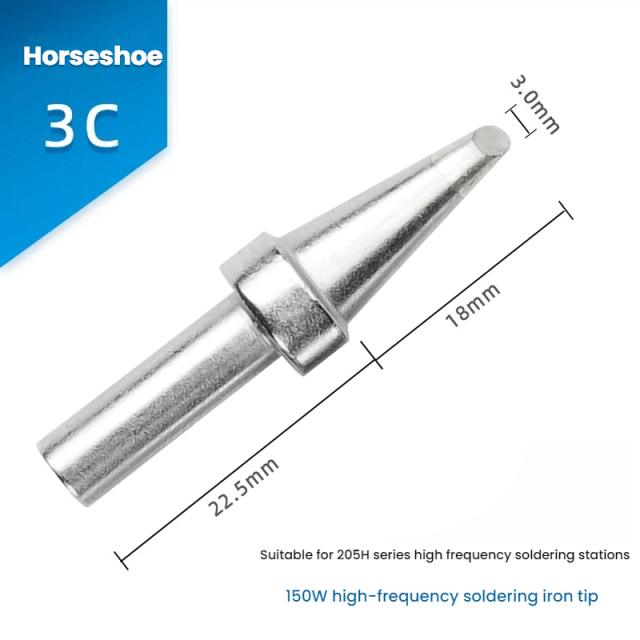

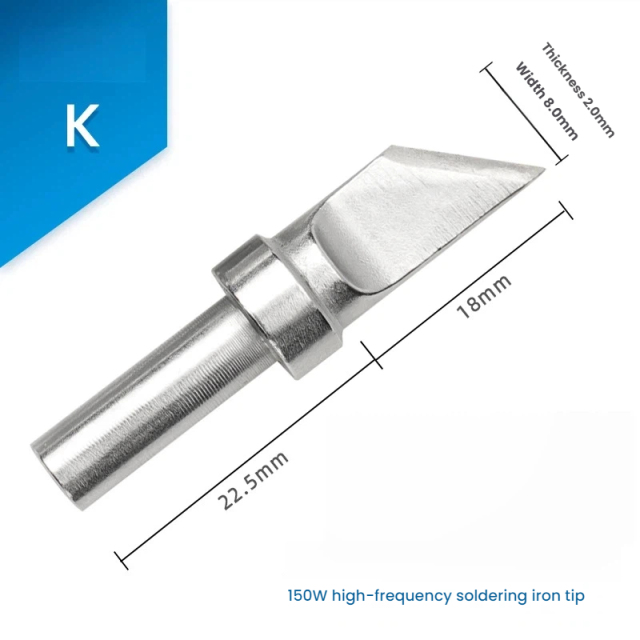

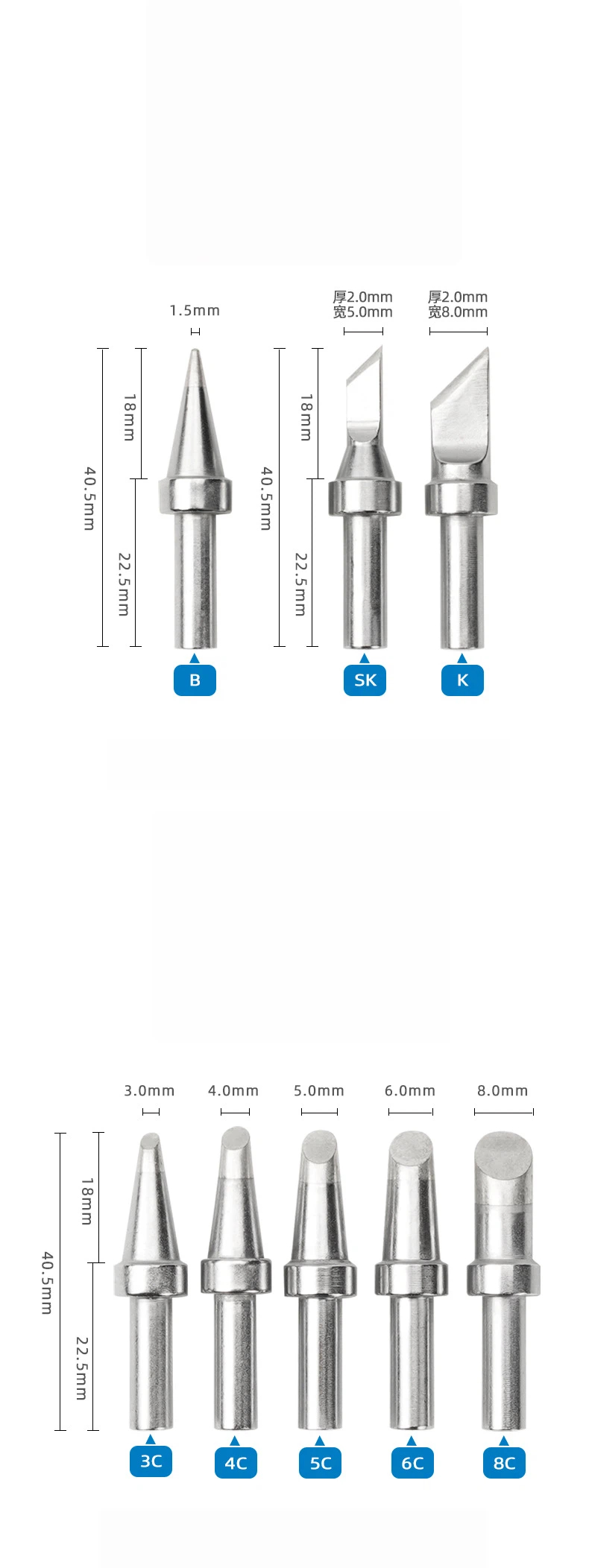

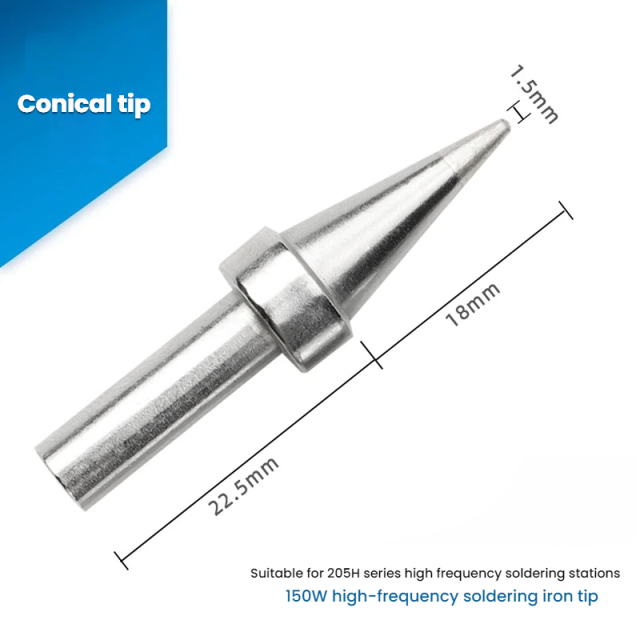

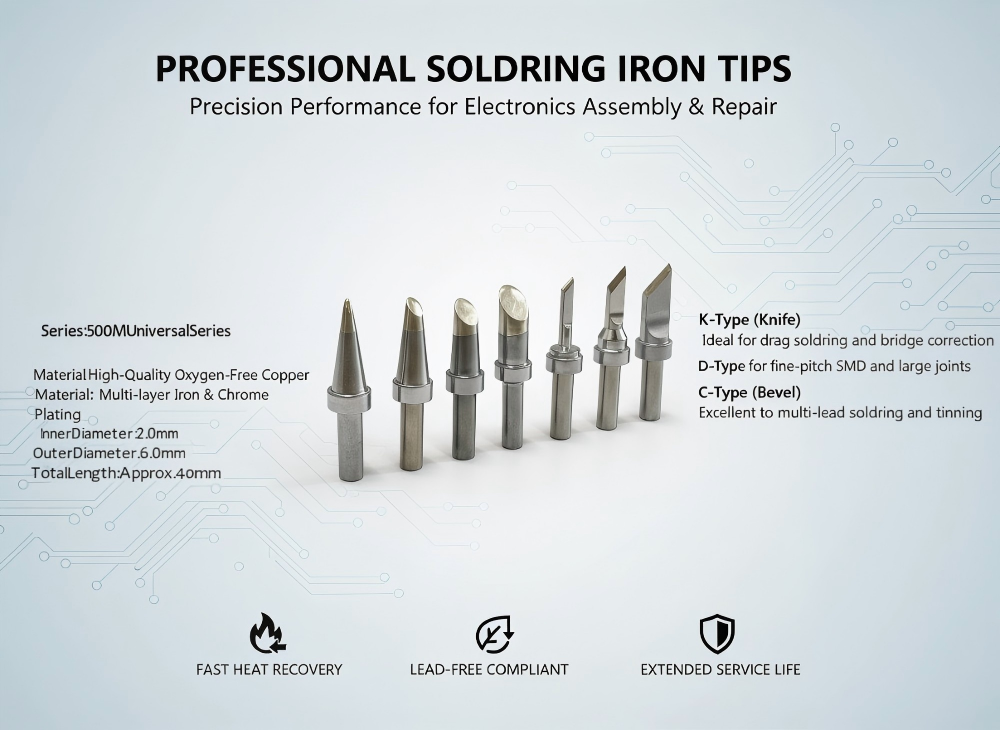

Precision Fit: Outer diameter 6.0 mm, inner diameter 2.0 mm, total length approx. 37 mm – ensures secure contact with 205H-series heating elements.
Applications
Ideal for:
Switch-mode power supply and industrial power repair
New energy and automotive electronics
Motor and ESC (electronic speed controller) repair
High-frequency RF and power amplifier equipment
Maintenance & Replacement
To extend tip life:
Clean with a damp sponge or brass wire ball during use.
Apply a solder "tin cap" before powering off.
Use recommended temperatures: 350°C ± 10°C for lead-free, 320°C ± 10°C for leaded solder.
Never use files or abrasives – these damage the plating.
Replace immediately if you observe:
Pits or holes on the working surface
Solder creeping up the barrel
Significant loss of heating efficiency

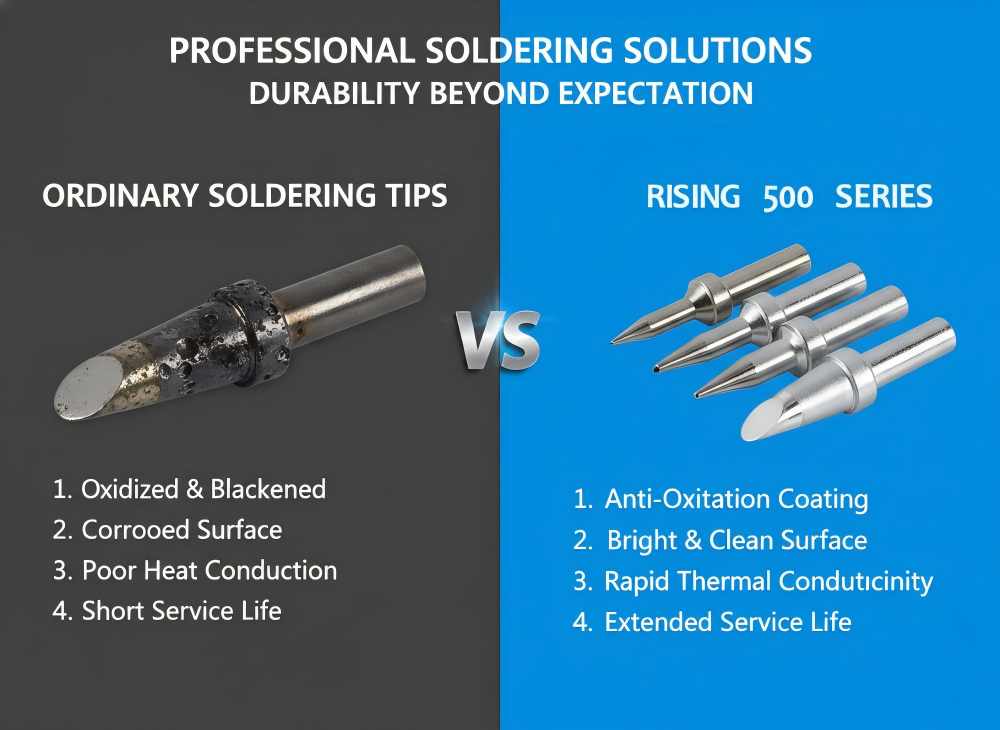

Permanent blackening that rejects solder
Bulk & Custom Orders
Volume discounts and custom tip shapes or plating specifications are available for qualified buyers. Contact us for technical datasheets or wholesale inquiries.
Use Scenarios
Routine Maintenance of Electronics Assembly Stations
In high-volume electronics production environments, the routine replacement of worn soldering iron tips on Quick 205H soldering stations is crucial for maintaining thermal consistency and solder joint quality. These tips play a pivotal role by complying with demanding thermal cycling requirements and ensuring minimal heat loss. Integration with existing station hardware enables fast tip changes, thus supporting continuous operations while optimizing workflow efficiency. Our soldering iron tip black supplier solutions facilitate inventory readiness for rapid maintenance cycles across manufacturing lines.
Precision Soldering in On-Site Repair and Training Settings
For technical service sectors and training facilities, the 500 Series tips provide accurate heat delivery required during intricate repair tasks or instructional demonstrations. Their compatibility with the portable soldering iron variants of Quick 205H stations allows technicians to manage delicate solder joints on various assemblies. The enhanced durability and reproducible performance reduce variability in teaching and field environments, proving effective for skill development as well as dependable on-site repair operations reliant on a robust soldering iron kit supplier network.
Are the 500 Series soldering iron tips customizable for specific applications?
We offer flexible customization options, including material composition and tip geometry, allowing you to tailor the soldering iron tips for your production requirements. Our expertise ensures these tips meet the thermal and mechanical demands of your specific soldering tasks.
How do I replace the tip on my Quick 205H soldering station?

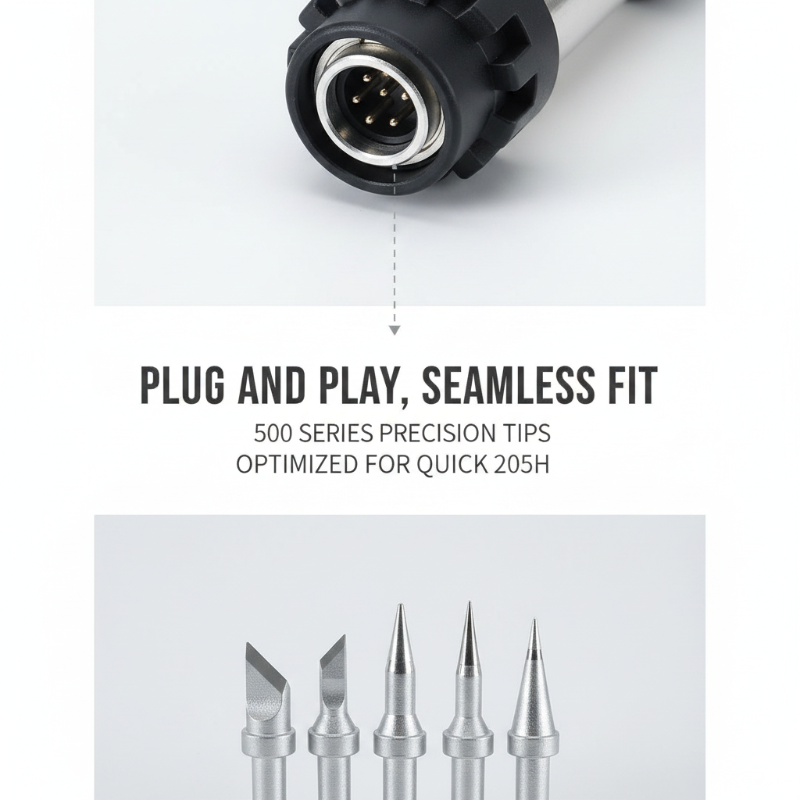

Our 500 Series soldering iron tips are designed for easy replacement on the Quick 205H. Simply detach the worn tip once cooled and install the new one, minimizing downtime and maintaining soldering consistency during production or repair tasks.
Can you supply bulk orders of soldering iron tips and soldering kits?
Yes, as a professional soldering iron kit supplier and soldering iron tip black factory, we support stable, cost-effective wholesale supply for industrial buyers. We ensure consistent quality and on-time delivery to meet your large-scale procurement needs.
What benefits do 500 Series tips provide for industrial soldering stations?
Our 500 Series tips deliver precise heat transfer that reduces overheating risk and extends tip life. This improves solder joint consistency and reliability, which is crucial for high-volume manufacturing environments requiring stable soldering stations and minimized rework.
